Type B Ventilation Grille

Introduction:

The frame and blades are constructed of high-quality extruded plastic profiles, which have the advantages of corrosion resistance and good rigidity.
The overall structure is manufactured with a mechanical assembly to ensure rigidity and maintain a straight appearance.
Features:
The air grill has the function of helping to control the temperature, can flexibly adjust the air volume, filter the impurities and dust in the working environment, and bring in fresh air.
In addition, it has the effect of air circulation, bringing the breeze to the whole space.

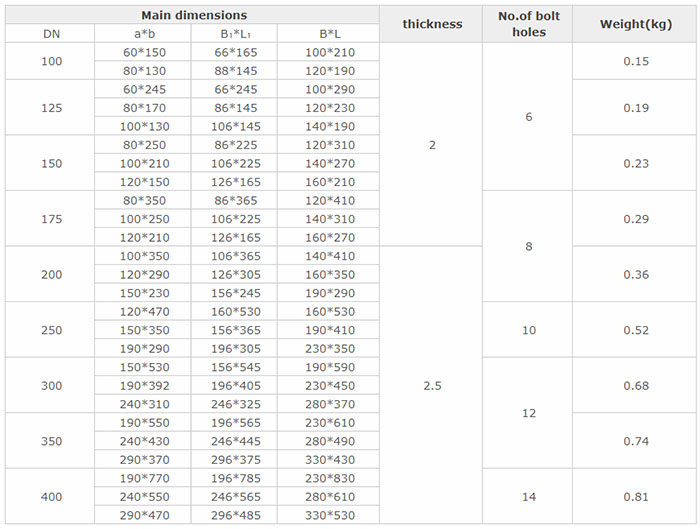

Specification:

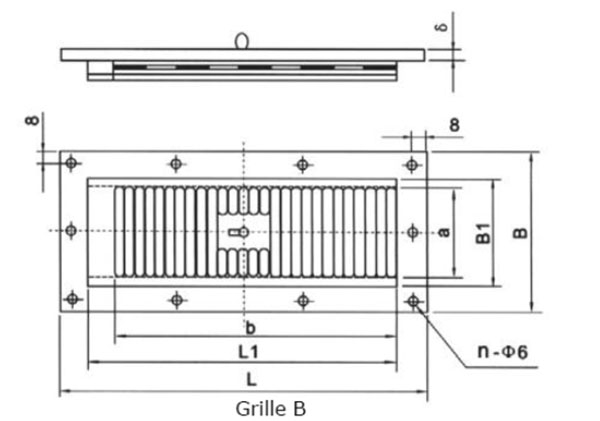

Outline Drawing:
