Type E Ventilation Grille

Introduction:

CB T462-1996 ventilation grilles are generally used for ventilation of air conditioning systems.
There are five types to choose from, the grille A has two layers, the air flow rate can be adjusted by a switch, it is suitable for ships, other buildings or any place where air equipment is required.
Outline Drawing:

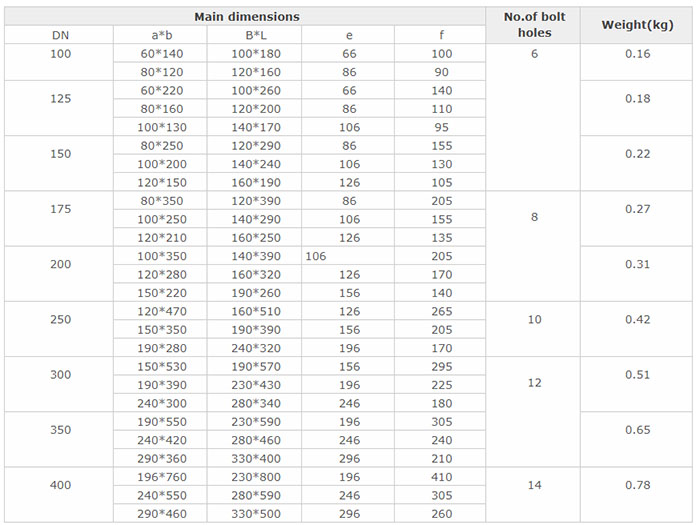

Specification:

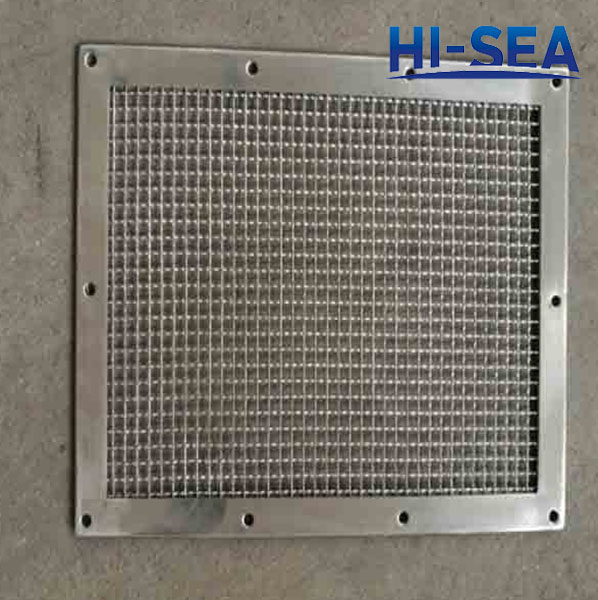

Product Showing:
