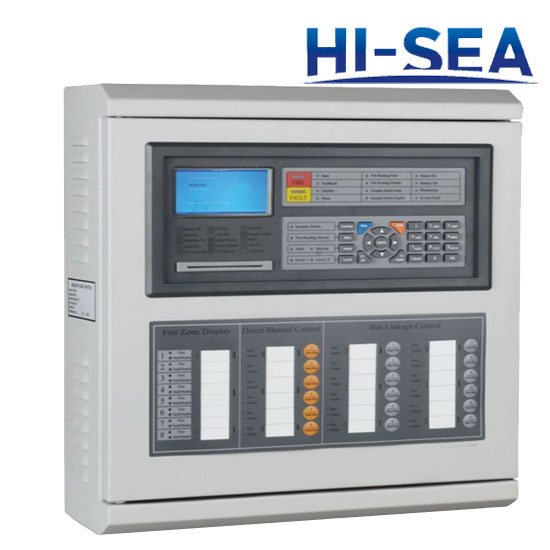

Wall-mounted Type Fire Alarm Control Panel

Wall-mounted Type Fire Alarm Control Panel

Technical Parameters

Operating Temperature Range:15℃~35℃

Operating Humidity Range:30%~90% RH

Power:AC 220V, 50Hz

DC Backup Power:DC 24V,4Ah

Static Power Consumption:220V,60mA

Dimensions:320mm*410mm*110mm

Detector Circuits:Connected through a multi-line detector circuit field up to 16 loops, each loop received the maximum 15 detectors.

Features

I.Accumulation Function:Warming will not take place until circuit detection is confirmed after an accumulated period of time, so as to reduce the interference and reporting mistakes of ordinary circuits and enhance the reliability of the mainframe.

II.Automatic Circuit Detection: Digit-counting scanning is adopted for circuit detection to ensure normal operation of each circuit.

III.Reserve Power Supply Protective Device:In case of power failure, discharge the reserve battery will automatically stop when it is below DC 18V, so as to extend its service life.

IV.Overall Configuration:External lines are led into the terminal distrbuting board through solts, and is separated from the circuit board, which can be replaced without removing external lines, easy and fast to maintain.
