Water mist fire extinguisher
[Search Related Products]Water mist fire extinguisher
The water mist fire monitor with low working pressure, has the advantages of compact structure, light, to make a knapsack, convenient in different environment reach fire-fighting purposes, is a new generation of fire extinguishing device. Water mist fire monitor is the use of pressure water, formation water mixed with certain pressure fire extinguishing media, can't fire extinguishing purposes, especially applicable to save city residential area, tunnel, bazaar, high road, high-rise buildings, vehicles and other fires, especially in the initial stage of fire fighting and rescue effect in the process of the apparent.
Product detail:
-Water mist fire extinguisher
-Agent: Light water
-Capacity: 3,4,6,9 L
-Work pressure: 12 bar
-Running Temperature:-20~60
Application: Class A fire
Water mist fire extinguisher parameter
Type |
3L |
4L |
6L |
9L |
Out-diameter(mm) |
130 |
130 |
180 |
180 |
Cylinder Length(mm) |
350 |
450 |
410 |
540 |
Cylinder Weight(kg) |
1.5 |
1.8 |
2.3 |
2.9 |
Extinguisher Weight(kg) |
4.5 |
6.3 |
8.8 |
12.5 |
Working Pressure(Bar) |
12 |
12 |
12 |
12 |
Test Pressure(Bar) |
25 |
25 |
25 |
25 |
Min Wall-thickness(mm) |
1 |
1.2 |
1.2 |
1.5 |

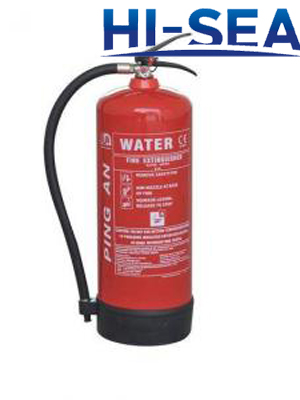

photo of Water mist fire extinguisher
