Wet Chemical Fire Extinguisher
[Search Related Products]
Wet Chemical Fire Extinguisher
YTKY Stored pressure type wet chemical fire extinguishers are used for cooking oil or fat where the spray can create a flame almost immediately. Extinguishment happens while the wet chemical agent reacts with oil to form soap like film to seal the surface of the oil and cool it down to prevent re-ignition.
A refillable fire extinguisher containing Wet Chemical, for use on Class AB(cooking oil) fires in Fast Food Outlets, Fish & Chip Shops, Restaurants and other Catering establishments A refillable fire extinguisher containing Wet Chemical, for use on Class F (cooking oil) fires in Fast Food Outlets, Fish & Chip Shops, Restaurants and other Catering establishments
Product detail:
Material: Steel
Test pressure: 27ar
Name: Wet chemical fire extinguisher
Working pressure: 14bar
Range of discharge: 1m
Material: S304
Temperature Range: 0~60ˇăC
Wet chemical fire extinguishers parameter
Capacity |
4L |
6L |
9L |
Out-Dia.(mm) |
140 |
160 |
180 |
Volume (L) |
5.4 |
7.8 |
10.5 |
Cylinder-length (mm) |
410 |
450 |
485 |
Cylinder Weight (kg) |
2.1 |
2.95 |
3.6 |
Extinguisher Weight (kg) |
6.7 |
9.5 |
14 |
Filling Weight (L) |
4 |
6 |
9 |
Min Wall-thickness |
1.13 |
1.23 |
1.3 |
Fire Rate: |
13A 89B |
27A 144B |
34A 183B |

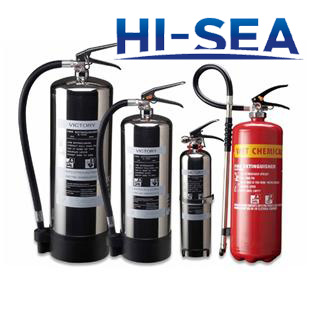

photo of Wet Chemical Fire Extinguisher
