ZJHS Pneumatic High Pressure Angle Control Valve
[Search Related Products]
ZJHS - Pneumatic anti-cavitation high pressure angle regulating valve
Advantage: stable motion, simple structure, excellent anti-blocking
Application: regulating medium with high viscosity, or suspended matter and granule, using at the circumstance of right angle.

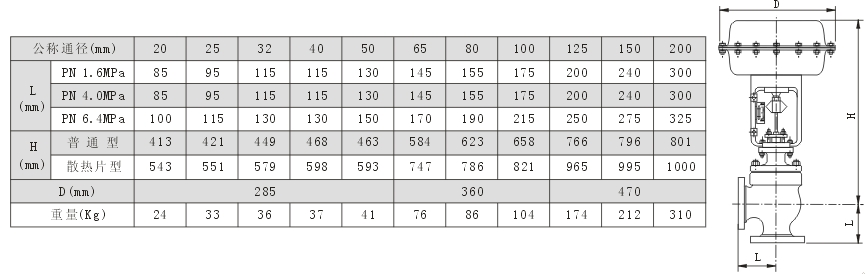

Nominal Dimension (mm) | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | |||||
Seat Diameter (mm) | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
Flow coefficient (Kv) | 1.6 | 2.5 | 4.0 | 6.3 | 20 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
Rangeability | 30:1 | |||||||||||||||
Nominal Pressure | 1.6,4.0,6.4MPa;Special order:10,22,32MPa | |||||||||||||||
Core Type | Single seat plunger valve core | |||||||||||||||
Flow Characteristics | Linear, logarithmic | |||||||||||||||
Effect Model | Pneumatic open or close | |||||||||||||||
Working Temperature | Ordinary model:-40~230ˇăC, Radiation model:230~450ˇăC, Special ordering:450~600ˇăC | |||||||||||||||
Flange Standard | ANSI, JIS, DIN | |||||||||||||||
Actuator | ZHA/B multiple spring diaphragm actuator, ZSL linear motivation pneumatic plunger actuator | |||||||||||||||
Available parts | Positioner, solenoid valve, air filt pressure reducing valve, locator, valve location, feedback device, emergency reaction device, handwheel etc. |
