15 Degree Dredge Ball Joint provides a flexible load-bearing connection between sections of a pipeline. The principle field of application is in floating lines, whose sections are supported by pontoons or other buoyancy. The15 degree dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another.There are various pressure levels,such as 10,20 or 30bar.

In addition to the use in floating pipelines, 15 degree dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The 15 degree dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.

For more information,please feel free to contact us.

Features£º

1.Easy assembly and dis-assembly.

2.Liner is made from war-resistant materials.And it is replaceable.

3.It is hard to leak with flexible seal.

4.Quick fix,low cost.

5.Operate at low friction.

6.Low,medium and high pressure,high efficiency.

Specifications:

15Degrees tilting angle

10 bar

20 bar

30 bar

Pipe I.D.

Ball Joint I.D.

Height

Width

Weight

Height

Width

Weight

Height

Width

Weight

[mm]

[mm]

[mm]

[mm]

[kg]

[mm

[mm]

[kg]

[mm]

[mm]

[kg]

400

428

416

796

233

504

851

330

562

900

423

450

478

469

893

338

564

960

470

645

1,017

625

500

536

524

1,000

471

624

1,065

644

712

1,130

856

550

586

561

1,088

602

681

1,168

855

744

1,237

1,120

600

644

621

1,192

798

744

1,277

1,117

842

1,350

1,452

650

694

663

1,285

1,001

798

1,379

1,408

904

1,457

1,828

700

744

711

1,379

1,264

853

1,479

1,742

966

1,560

2,243

750

804

768

1,486

1,566

928

1,593

2,257

1,049

1,687

2,848

800

854

812

1,576

1,846

970

1,690

2,590

1,091

1,780

3,339

850

904

852

1,666

2,189

1,022

1,787

3,110

1,174

1,898

4,058

900

954

900

1,766

2,611

1,088

1,891

3,659

1,237

2,000

4,788

1,000

1,066

1,004

1,964

3,583

1,207

2,106

5,039

1,362

2,220

6,480

1,100

1,166

1,094

2,154

4,756

1,324

2,296

6,622

1,500

2,441

8,663

1,200

1,266

1,167

2,328

5,943

1,426

2,496

8,548

1,644

2,680

11,584

Note:All the sizes can be customized according to your special requirements.

15 Degree Dredge Ball Joint

Drawing of 15 Degree Dredge Ball Joint

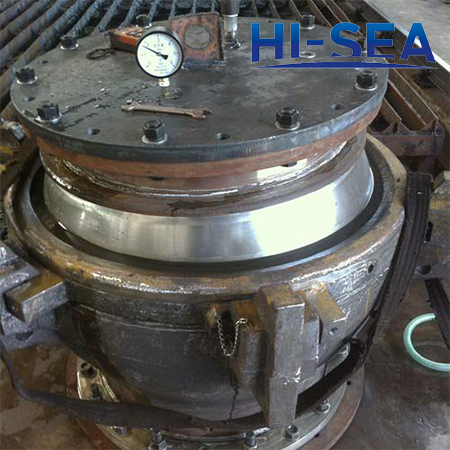

Pictures are as follows:

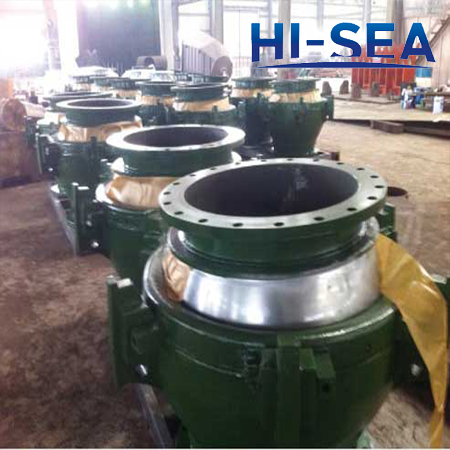

15 Degree Dredge Ball Joint

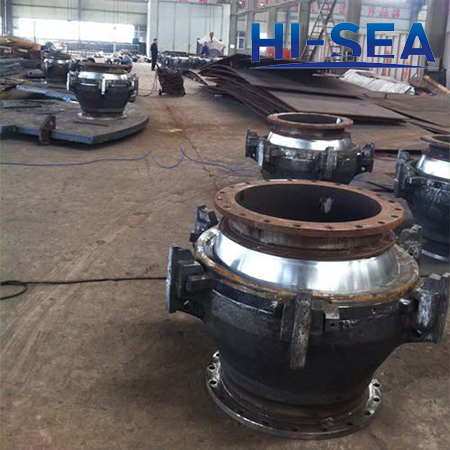

15 Degree Dredge Ball Joint

15 Degree Dredge Ball Joint

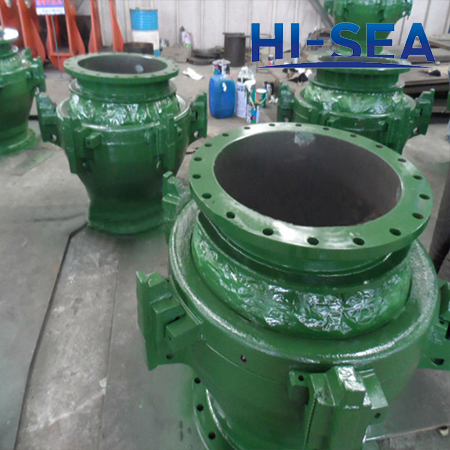

15 Degree Dredge Ball Joint
