DN500 Dredge Ball Joint

DN500 Dredge Ball Joint

DN500 Dredge Ball Joint can vibrate from 15 to 18 degrees tilting angle.There are various pressure levels,such as 10,20 or 30bar.DN500 dredge ball joint provides a flexible load-bearing connection between sections of a pipeline. The principle field of application is in floating lines, whose sections are supported by pontoons or other buoyancy. TheDN500 dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another.

In addition to the use in floating pipelines, DN500 dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The DN500 dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.

For more information,please feel free to contact us.

Features£º

1.Liner is made from war-resistant materials.And it is replaceable.

2.Easy assembly and dis-assembly.

3.It is hard to leak with flexible seal.

4.Low,medium and high pressure,high efficiency.

5.Quick fix,low cost.

6.Operate at low friction.

Specifications£º

15Degrees tilting angle

10 bar

20 bar

30 bar

Pipe I.D.

Ball Joint I.D.

Height

Width

Weight

Height

Width

Weight

Height

Width

Weight

[mm]

[mm]

[mm]

[mm]

[kg]

[mm

[mm]

[kg]

[mm]

[mm]

[kg]

500

536

524

1,000

471

624

1,065

644

712

1,130

856

18Degrees tilting angle

10 bar

20 bar

30 bar

Pipe I.D.

Ball Joint I.D.

Height

Width

Weight

Height

Width

Weight

Height

Width

Weight

[mm]

[mm]

[mm]

[mm]

[kg]

[mm

[mm]

[kg]

[mm]

[mm]

[kg]

500

536

616

1,112

677

743

1,210

1,011

840

1,284

1,313

Note:DN500 Dredge Ball Joint can be customized according to your special requirements.

DN500 Dredge Ball Joint

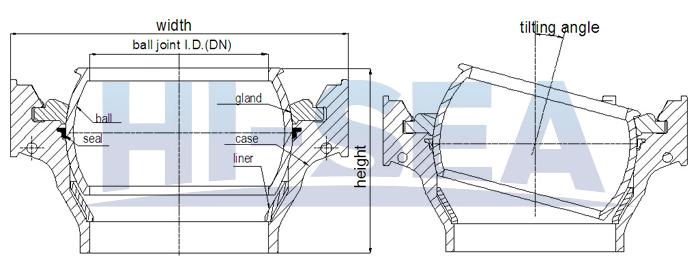

Drawing of DN500 Dredge Ball Joint

Pictures are as follows:

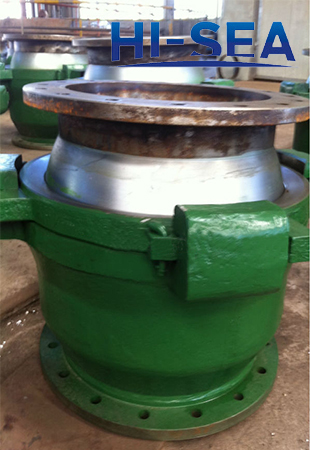

DN500 Dredge Ball Joint

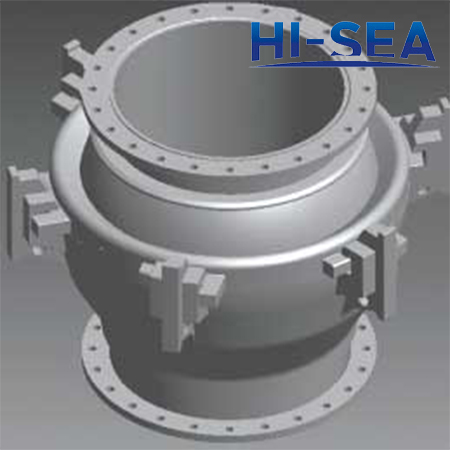

DN500 Dredge Ball Joint

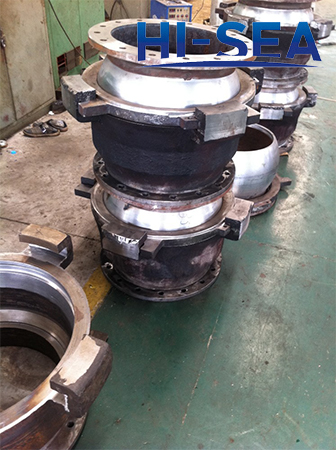

DN500 Dredge Ball Joint

DN500 Dredge Ball Joint
