18 Degree Dredge Ball Joint
[Search Related Products]
18 Degree Dredge Ball Joint
18 Degree Dredge Ball Joint provides a flexible load-bearing connection between sections of a pipeline. The principle field of application is in floating lines, whose sections are supported by pontoons or other buoyancy. The18 degree dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another.There are various pressure levels,such as 10,20 or 30bar.
In addition to the use in floating pipelines, 18 degree dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The 18 degree dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.
For more information,please feel free to contact us.
Features£º
1.Easy assembly and dis-assembly.
2.Liner is made from war-resistant materials.And it is replaceable.
3.Quick fix,low cost.
4.Operate at low friction.
5.It is hard to leak with flexible seal.
6.Low,medium and high pressure,high efficiency.
Specifications£º
|
18Degrees tilting angle |
10 bar |
20 bar |
30 bar |
|||||||
|
Pipe I.D. |
Ball Joint I.D. |
Height |
Width |
Weight |
Height |
Width |
Weight |
Height |
Width |
Weight |
|
[mm] |
[mm] |
[mm] |
[mm] |
[kg] |
[mm |
[mm] |
[kg] |
[mm] |
[mm] |
[kg] |
|
400 |
428 |
500 |
892 |
353 |
593 |
966 |
513 |
670 |
1,022 |
658 |
|
450 |
478 |
557 |
998 |
495 |
664 |
1,080 |
733 |
752 |
1,148 |
942 |
|
500 |
536 |
616 |
1,112 |
677 |
743 |
1,210 |
1,011 |
840 |
1,284 |
1,313 |
|
550 |
586 |
677 |
1,218 |
913 |
807 |
1,326 |
1,342 |
921 |
1,402 |
1,717 |
|
600 |
644 |
732 |
1,330 |
1,168 |
876 |
1,444 |
1,719 |
991 |
1,528 |
2,222 |
|
650 |
694 |
786 |
1,432 |
1,463 |
944 |
1,562 |
2,193 |
1,074 |
1,653 |
2,914 |
|
700 |
744 |
849 |
1,542 |
1,849 |
1,009 |
1,672 |
2,682 |
1,157 |
1,780 |
3,509 |
|
750 |
804 |
913 |
1,660 |
2,316 |
1,094 |
1,806 |
3,411 |
1,239 |
1,908 |
4,365 |
|
800 |
854 |
973 |
1,768 |
2,782 |
1,149 |
1,912 |
4,007 |
1,304 |
2,024 |
5,173 |
|
850 |
904 |
1,021 |
1,870 |
3,274 |
1,217 |
2,030 |
4,817 |
1,387 |
2,144 |
6,204 |
|
900 |
954 |
1,076 |
1,974 |
3,839 |
1,282 |
2,134 |
5,610 |
1,465 |
2,264 |
7,308 |
|
1,000 |
1,066 |
1,200 |
2,200 |
5,319 |
1,428 |
2,384 |
7,775 |
1,625 |
2,524 |
10,037 |
|
1,100 |
1,166 |
1,303 |
2,406 |
7,026 |
1,557 |
2,620 |
10,306 |
1,776 |
2,764 |
13,215 |
|
1,200 |
1,266 |
1,405 |
2,612 |
8,944 |
1,688 |
2,832 |
13,158 |
1,904 |
2,924 |
16,458 |
Note:All the size can be customized according to your requirements.

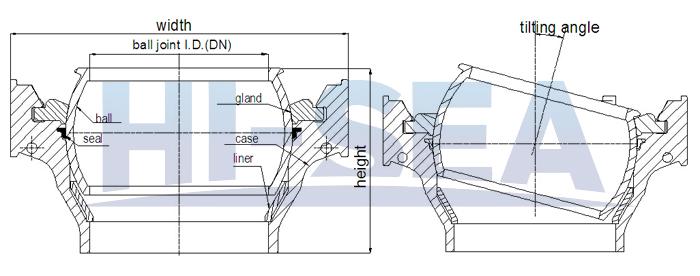

Drawing of 18 Degree Dredge Ball Joint

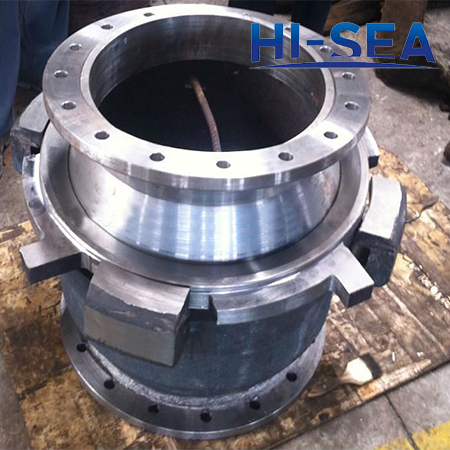

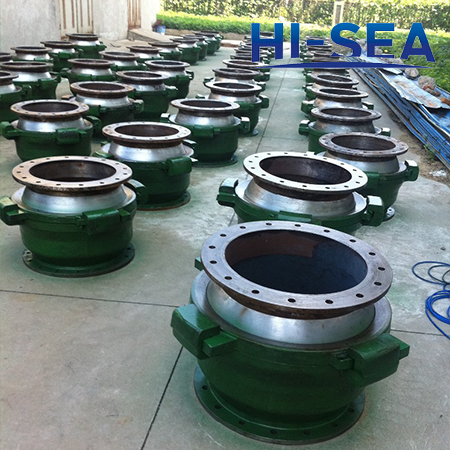

Pictures are as follows:
