90¡ã Pre-heat Insulation Elbow
[Search Related Products]90¡ã Pre-heat Insulation Elbow

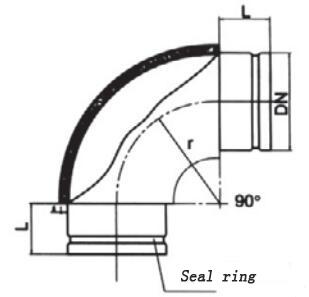

Drawing
Main Specification
Specification |
DN |
r |
L |
PB80/90¡ã |
80 |
100 |
40 |
PB100/90¡ã |
100 |
1D |
40 |
PB125/90¡ã |
125 |
1D |
40 |
PB150/90¡ã |
150 |
1D |
40 |
PB160/90¡ã |
160 |
1D |
40 |
PB175/90¡ã |
175 |
1D |
40 |
PB200/90¡ã |
200 |
1D |
40 |
PB300/90¡ã |
300 |
1D |
40 |
PB400/90¡ã |
400 |
1D |
50 |
PB500/90¡ã |
500 |
1D |
50 |
Note: Particular dimension type is supplied according to customers.

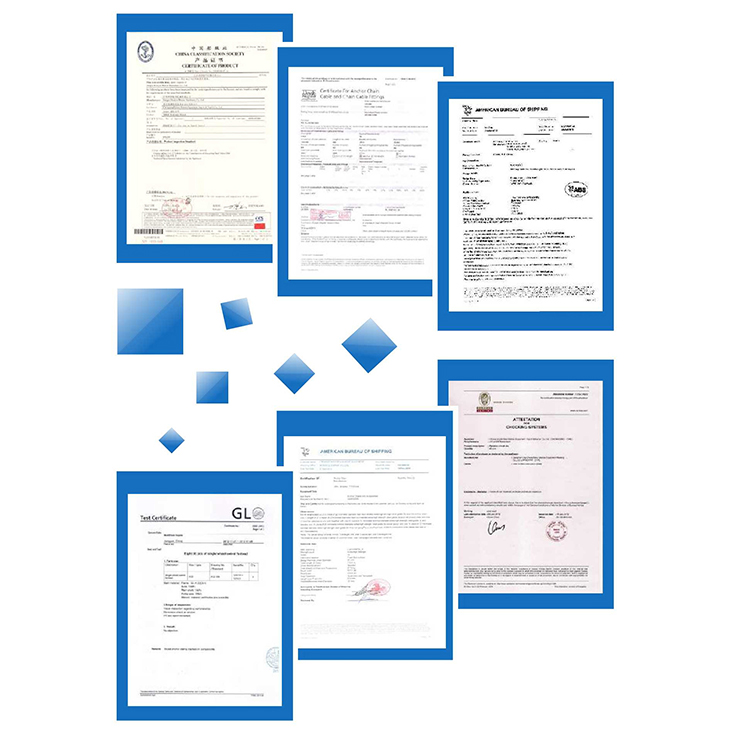

Certification
