Insertion Joint
[Search Related Products]Insertion Joint

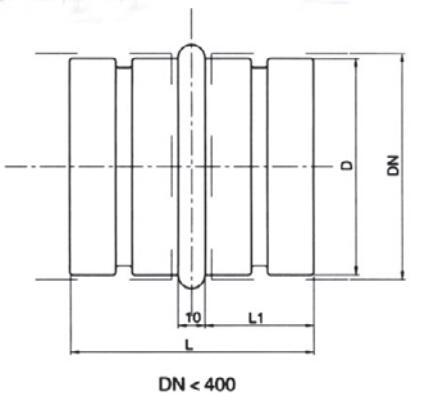

Drawing
Main Specification
|
Specification |
Ext.dia.D |
L |
Length L1 |
Wgt.≈kg |
|
N80 |
78 |
90 |
40 |
0.14 |
|
N100 |
98 |
90 |
40 |
0.18 |
|
N125 |
123 |
90 |
40 |
0.22 |
|
N150 |
148 |
90 |
40 |
0.26 |
|
N160 |
158 |
90 |
40 |
0.28 |
|
N175 |
173 |
90 |
40 |
0.31 |
|
N200 |
198 |
90 |
40 |
0.35 |
|
N250 |
248 |
90 |
40 |
0.44 |
|
N300 |
298 |
90 |
40 |
0.77 |
Note: For insertion joints with DN≥400. seals are not applied. Two side surfaces of the joints are inward
flanged, intermediate raised ribs on midddle of joints. Length of the joint, L is equal to 50.
