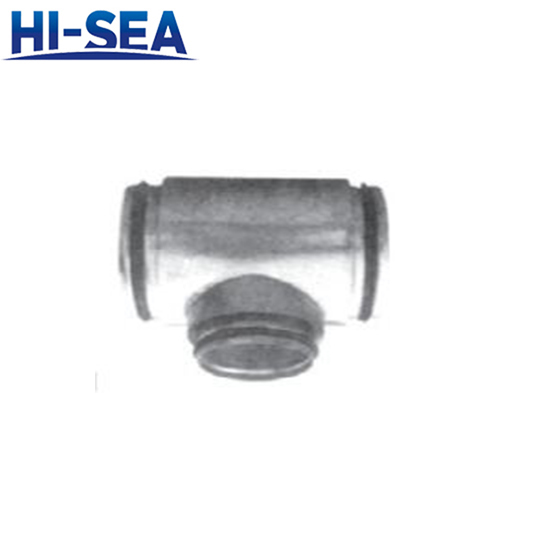

Non-heat insulation T-piece

Non-heat insulation T-piece

Drawing

Non-heat insulation T-piece

Main Specification

Specifications	D	D1	L	H	L1
Y80/80	78	78	205	100	40
Y100/80	98	78	255	125	40
Y100/100	98	98	255	125	40
Y125/80	123	78	320	160	40
Y125/100	123	98	320	160	40
Y125/125	123	123	320	160	40
Y150/80	148	78	380	190	40
Y150/100	148	98	380	190	40
Y150/125	148	123	380	190	40
Y150/150	148	148	380	190	40
Y160/80	158	78	405	205	40
Y160/100	158	98	405	205	40
Y160/125	158	123	405	205	40
Y160/160	158	158	405	205	40
Y175/80	173	78	445	220	40
Y175/100	173	98	445	220	40
Y175/125	173	123	445	220	40
Y175/150	173	148	445	220	40
Y175/160	173	158	445	220	40
Y175/175	173	173	510	220	40
Y200/80	198	78	510	255	40
Y200/100	198	98	510	255	40
Y200/125	198	123	510	255	40
Y200/160	198	158	510	255	40
Y200/200	198	198	510	255	40

Certification
