A-type Fast Rescue Boat Davit

Product Description

The A type fast rescue boat davit is a special equipment used on board for launching and recovering a fast rescue boat.This launching appliance is equipment with wave compensation unit,which meet with requirement for use on board the vessel.

Specifications:

Working load(KN)	Hoisting load(KN)	Hoisting speed(m/min)	Lowering speed(m/min)	Main Dimension(mm)
Working load(KN)	Hoisting load(KN)	Hoisting speed(m/min)	Lowering speed(m/min)	A	B	C	H
14	14	>18	40～60	200	<2000	<1500	3800
25	14	>18	40～60	200	<30000	<1850	4000
32	32	>18	40～60	400	<3500	<2300	4200
50	50	>18	40～60	500	<4000	<2550	4500
50	50	>18	40～60	500	<4000	<3500	5500

All the mesures above can be tailored according to our requests.

Drawing of A-type Fast Rescue Boat Davit

A-type Fast Rescue Boat Davit

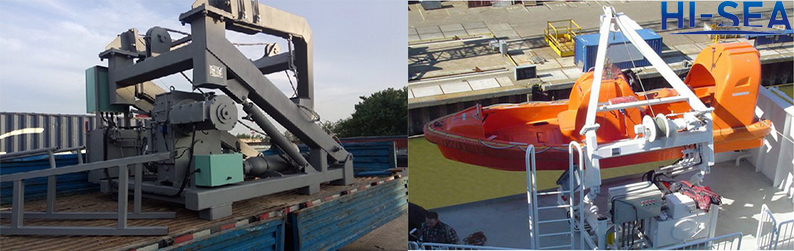

Pictures of A-type Fast Rescue Boat Davit

S.W.L(KN)	Main Dimension(mm)				Suitable for Rescue Boat Capacity
S.W.L(KN)	A	B	C	D	Suitable for Rescue Boat Capacity
21	1125	2540	3050	4475	≤10P
30	1350	3000	3500	5100	≤20P

Specifications of Another Type: 21KN 30KN A-type Fast Rescue Boat Davit

All the mesures above can be tailored according to our requests.

A-type Fast Rescue Boat Davit

Picture and Drawing of 21KN 33KN A-type Fast Rescue Boat Davit
