Fast Rescue Boat Launching Appliance Davit

Product Description

The Fast Rescue Boat Launching Appliance Davit is specially designed for handling fast rescue boats.And it is equipped with a self-contained hydraulic power pack unit and an electric rescue boat winch.The system can also be delivered with a hydraulic winch with a constant tension system.A well proven hydraulically operated anti-pendulum system can also be fitted onto the davit head.They can make recovery and launching more safety.Other sizes/dimensions available on requests.


Basic specification for enquiry:

Required lifting capacity Outreach ¨C min / max

Lifting height

Lifting speed

Luffing time

Self-weight of the davit

Power pack: (hydraulic, electric, or any other)

Power source

Required Classification societies


Quality Process Certifications£º

CCS,DNV,ABS,LRS,IRS,GL,BV,RINA,NK,KR



Specifications:

S.W.L
(KN)

Hoisting Speed
(m/min)

Main Dimensions(mm)

A

B

C

20

18

2175

3265

2070

25

18

2750

4200

2100

35

18

3485

4760

2200

20

48

2175

3265

2070

25

48

2750

4200

2100

All the measures above can be tailored according to your requests.



Fast Rescue Boat Launching Appliance Davit

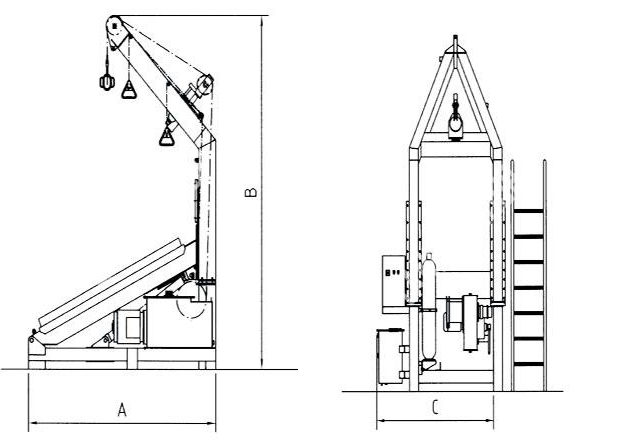

Drawing of Fast Rescue Boat Launching Appliance Davit



Fast Rescue Boat Launching Appliance Davit

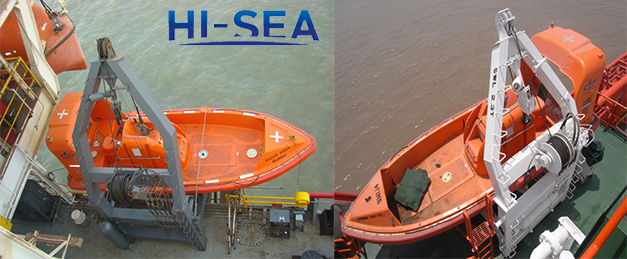

Pictures of Fast Rescue Boat Launching Appliance Davit



Specifications of other Fast Rescue Boat Launching Appliance Davit:

Max.Safety working load(KN)

Hoisting load(KN)

Lowering load(KN)

Hoisting speed(m\min)

Landing speed(m\min)

Remarks

28

28

28

48

40-60

With the wave compensation,anti-swing function

30

28

30

18

40-60

Electrical winch

28

28

28

48

40-60

Hydraulic winch

45

45

45

48

40-60

Auto-wave compensation

45

45

45

48

40-60

Manual wave compensation

45

45

45

18

40-60

Without anti-swing function

45

45

45

18

40-60

Electrical winch

All the measures above can be tailored according to your requests.




Specification of 27KN Fast Rescue Boat Launching Appliance Davit:

S.W.L£¨KN£©

Hoisting Load(KN)

Slowing Speed(m\min)

Slowing Speed(m\min)

Capacity of Drum(m)

27

27

¡İ48

48¡«60

35

Fast Rescue Boat Launching Appliance Davit

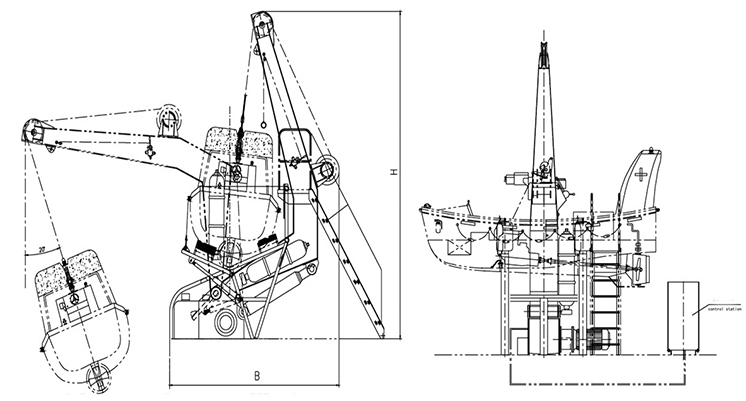

Drawing of 27KN Fast Rescue Boat Launching Appliance Davit





Specification of 30KN Fast Rescue Boat Launching Appliance Davit:

S.W.L£¨KN£©

Hoisting Load(KN)

Slowing Speed(m\min)

Slowing Speed(m\min)

Breadth B1(mm)

Breadth B2(mm)

Breadth A(mm)

Height H(mm)

Totally Weight(kg)

30

30

¡İ18

40¡«60

3900

1650

3900

4300

¡«2200


Fast Rescue Boat Launching Appliance Davit

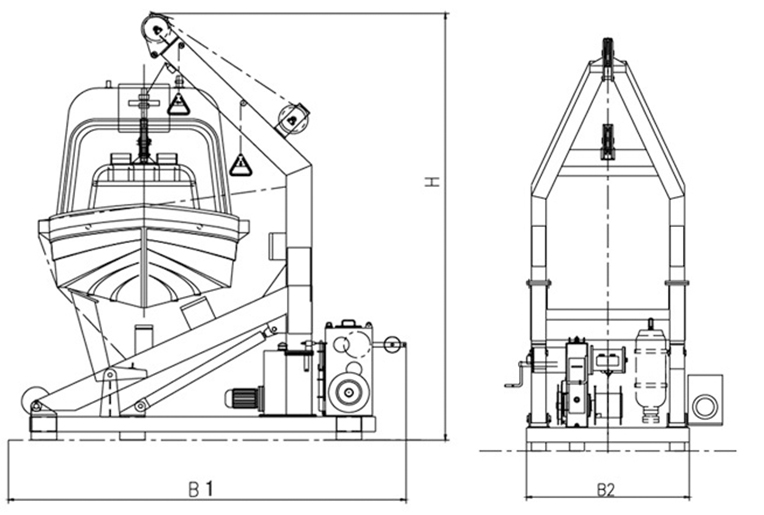

Drawing of 30KN Fast Rescue Boat Launching Appliance Davit



Fast Rescue Boat Launching Appliance Davit

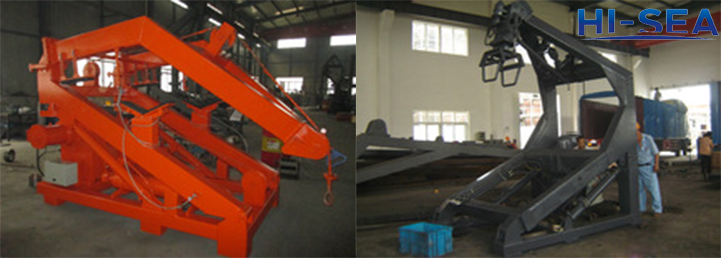

Photos of Fast Rescue Boat Launching Appliance Davit
