Launching Appliance of Free-fall Lifeboat

Product Description

The Freefall Davit placed at the stern of the ship consists of a launch ramp davit arm, winch and hydraulic unit. This device can make lifeboat freely land to water surface in an emergency or under the circumstances of trim 20°and list 10°. It meets requirements of International Safety of Life at Sea 1974, IMO, MSC. 81(70) and other regulations.

The Freefall Davit:

Quick get away from sinking vessel

Always standby for launch

Launching ramp for freefall lifeboats in a welded or flanged box girder execution

Suitable for all types of freefall boats

Other sizes/dimensions available on request

Basic specification for enquiry:

Required lifting capacity

Outreach – min / max

Lifting height

Lifting speed

Luffing time

Self-weight of the davit

Power pack: (hydraulic, electric, or any other)

Power source

Required Classification societies

Specifications:

S.W.L (KN)	Hoisting Load(KN)	Weight (kg)	Main Dimensions(mm)
			A	B	C
55	40	7800	7000	3134	7000
65	50	8500	7200	3134	8000
80	54	10700	7850	3040	9000

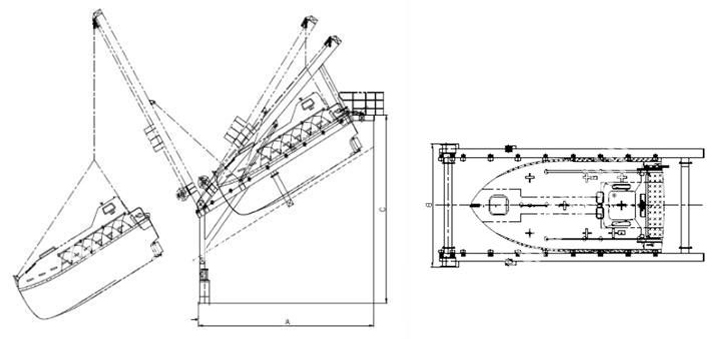

Drawing of Launching Appliance of Free-fall Lifeboat

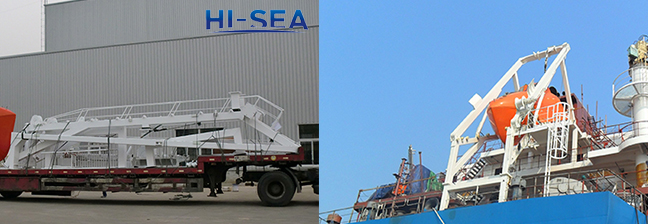

Photos of Launching Appliance of Free-fall Lifeboat

Other types:

Specifications of 55KN 70KN 90KN Launching Appliance of Free-fall Lifeboat:

Working load (KN)	Capacity of boat(P)	Main Dimensions(mm)
		A	B
55	28	6400	5400
70	42	8500	6600
90	50	9800	8500

All the measures can be tailored according to your requests.

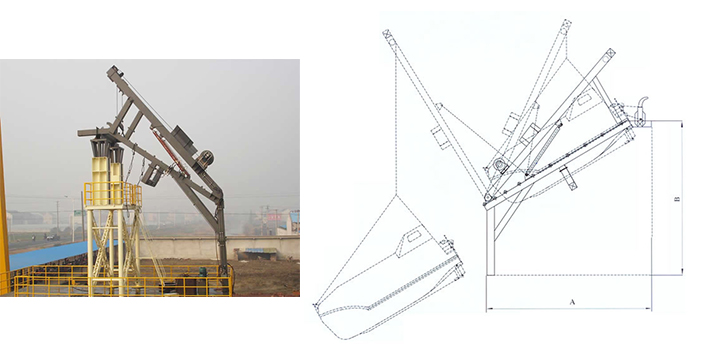

Picture and Drawing of 55KN 70KN 90KN Launching Appliance of Free-fall Lifeboat
