Cantilever Rack

Description of Cantilever Rack

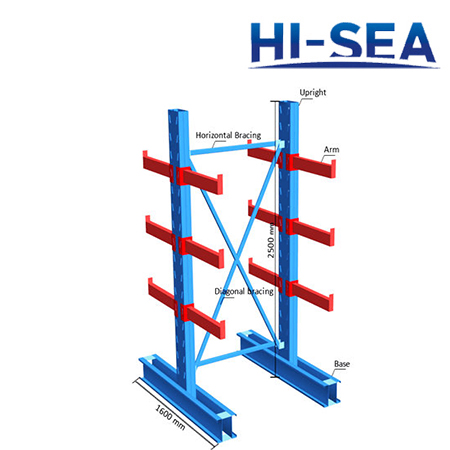

Cantilever rack consists of column pieces,cantilever arm and connecting rods.The cantilever can be single side or double sides.The cantilever column is mainly made of H beam or cold-rolled steel.The cantilever arm is mainly made of square tube,cold-rolled steel or H beam.Plug-in or bolt-type is used between cantilever and upright.Bolt type connection is used between the base and column.The base is mainly made of cold-rolled steel or H beam.The cantilever arm is mounted in the column.

Cantilever shelf is an important one of racks.This rack is used for storing long material,ring material,sheet,pipe and irregular goods.Cantilever rack is widely used in machining and building materials supermarket industry.Our cantilever rack can be customized according to your special requirements.For any more information,please feel free to contact us directly.

Characteristics of Cantilever Rack:

Stable and lightweight structure,good load capacity,high space utilization and work efficiency.

After it is increased the wood and steel grating,it is especially for small space and low density warehouse.It brings convenient management and open vision.

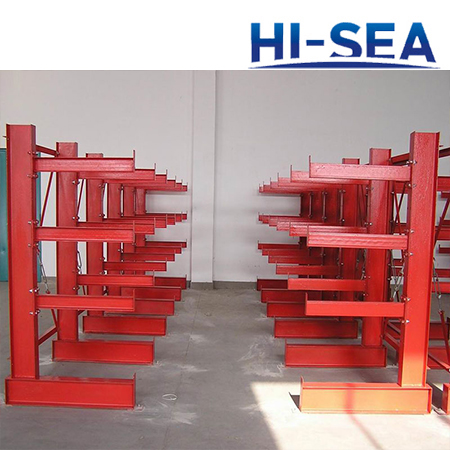

Cantilever Rack（1）

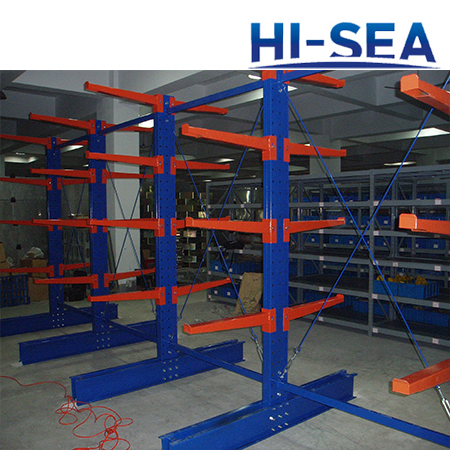

Cantilever Rack（2）

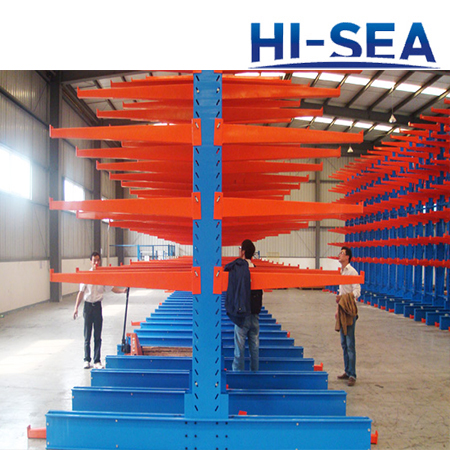

Cantilever Rack（3）

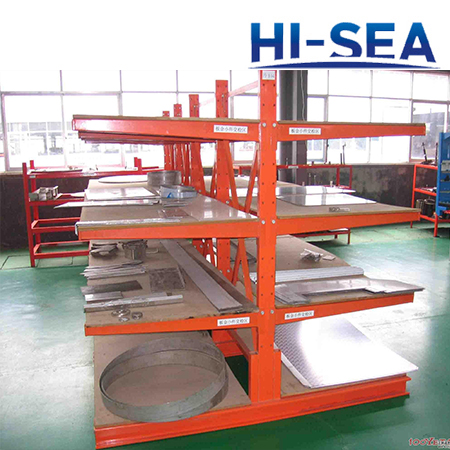

Cantilever Rack（4）

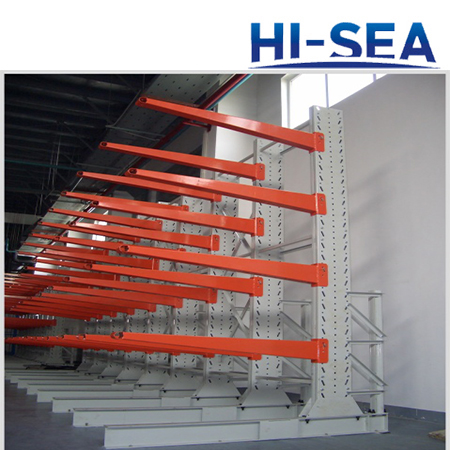

Cantilever Rack（5）

Cantilever Rack（6）
