Column Type Steel Tube Beacon

Column Type Steel Tube Beacon

Column type steel tube beacon is one of the main navigational aids, generally set up in the port, waterway along the coast or other lands to provide navigational aids for the passby or landing ships.

Components: base foundation, beacon body, solar beacon lights, reflector radar, radar transponder etc.

Material: steel, UHMWPE or other materials

Color: Red and Black or any others as required

Certificate: CCS/IALA/ISO

Customized Service: To meet customer¡¯s special requirements, our company can design specially for our customers. The diameter, size, height etc. are optional.

After-sale Service: once you face any problem when you use our products, please feel free to contact us. We¡¯ll try to help you solve the problem as soon as possible.

Column Type Steel Tube Beacon

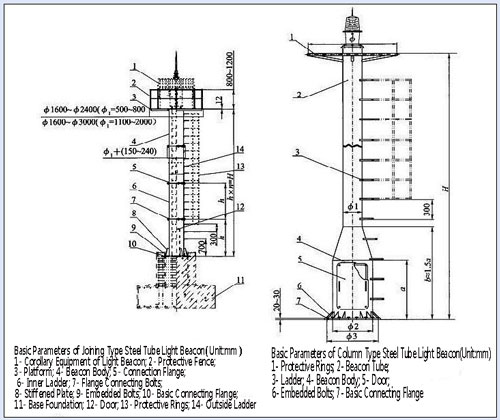

Drawing of Steel Tube Light Beacon

Unit:mm

Protective Ring Diameter(¦µ)

Steel Tube Diameter(¦µ1)

Beacon Body Diameter(¦µ2)

Bolt Pitch Diameter(¦µ3)

Embedded Bolts(£¾grade 8.8)

Segment Height(a)

Total Height(H)

Wall Thickness of Steel Tube

Number

Specification

1100

240

500

640

20

M24

900

2000~4000

8~16

1600

360

750

900

24

M30

1400

4000~6000

10~16

1800

450

950

1100

30

M30

1800

6000~10000

14~20

2000

600

1250

1400

36

M30

2000

10000~14000

16~20

2200

800

1650

1800

48

M30

2200

14000~20000

16~25

Note: the number and specification of embedded bolts is calculated according to the strength requirements of anti grade 12 typhoon.

Basic Parameters of Column Type Steel Tube Light Beacon

Unit:mm

Steel Tube Diameter(¦µ1)

Segment Height(h)

Segment Number(n)

Wall Thickness of Steel Tube(¦Ò)

Flange Thickness(¦Ò1)

Flange Bolts

Embedded Bolts

Number

Specification(grade)

Number

Specification(grade)

500~800

1500~2000

2~5

8~16

20~40

16~24

M16~M20(£¾8.8)

16~24

M20~M24(£¾8.8)

500~800

1500~2000

6~10

16~25

30~50

16~24

M20~M24(£¾ 10.9)

16~24

M24~M36(£¾10.9)

1100~2000

1500~2000

2~5

14~20

30~50

24~48

M20~M30(£¾8.8)

24~48

M24~M36(£¾8.8)

1100~2000

1500~2000

6~10

20~25

35~50

24~48

M24~M30(£¾10.9)

24~48

M30~M42(£¾8.8)

Note: the number and specification of embedded bolts is calculated according to the strength requirements of anti grade 12 typhoon.

Basic Parameters of Joining Type Steel Tube Light Beacon

Column Type Steel Tube Beacon

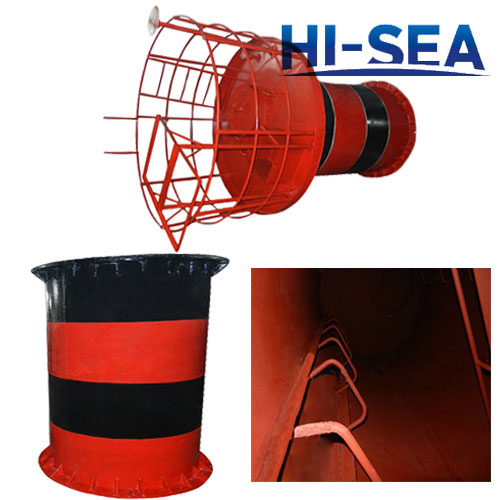

Detail Photos of Steel Tube Light Beacon
