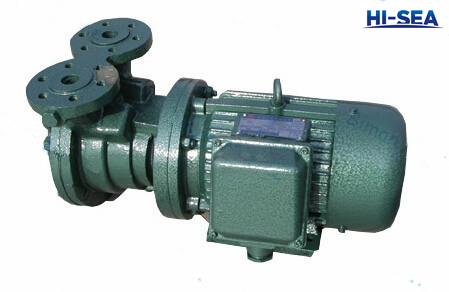

CXZ Marine Self-priming Vortex Pump
[Search Related Products]
Applications:
CXZ type marine self-priming vortex pumps are applicable to pumping fresh and sea water for drinking, washing and sanitary usesin vessels.
The pump rotates clockwise viewed from motor.
¡ô Features
1. Beautiful shape and fine structure,reliable performance.
2. Compeitive price.
3. Advanced techniques.
4. Good self-priming performance (does not need additional self-priming device), light weight, etc.
Model Explanation
for the example 20CXZ-30
20 ¡ªthe pump's head (m)
CXZ ¡ªmarine-type horizontal self-suction vortex pump
30 ¡ª Intergral number of the pump intake diameter
Main Technical Parameter
| Series Name | Marine pump CXZ | |||
| Product Name | Marine self-priming vortex pump | |||
| Feature | Simple construction, easy operation, well moving, convenient repairing, etc. | |||
| Model | HS-20CXZ-15 | HS-32CXZ-25 | HS-32CXZ-40 | HS-40CXZ-30 |
| Capacity (m3/h) | 1 | 3.5 | 3 | 9 |
| Head (m) | 35 | 28 | 40 | 30 |
| Speed (r/min) | 2900/3450 | 2900/3450 | 2900/3450 | 2900/3450 |
| Motor power | 0.75 | 1.5 | 2.2 | 4 |
| Overall weight | 26 | 57 | 57 | 80 |
| Application |
Applicable to pumping fresh and sea water for drinking, washing and sanitary uses in vessels |
|||
| Medium tempreture | Max.85¡æ | |||
| Certification | CCS, BV etc. | |||
Performance Parameter
|
Type |
Capacity |
Head |
Suction height |
Speed |
Motor power |
Weight |
|
(m3/h) |
(m) |
(m) |
(r/min) |
(kw) |
(kg) |
|
|
20CXZ-35 |
1 |
35 |
3 |
2900 |
0.75 |
52 |
|
32CXZ-25 |
3.5 |
28 |
3 |
2900 |
1.5 |
57 |
|
32CXZ-40 |
3 |
40 |
4 |
2900 |
2.2 |
57 |
|
40CXZ-30 |
9 |
30 |
4 |
2900 |
4 |
80 |

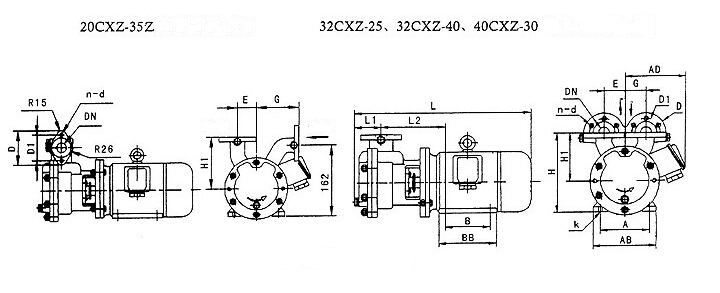

Structure
Our Certification
