WZ Marine Self-priming Vortex Multilevel Pump

[Search Related Products]

WZ Marine Self-priming Vortex Multilevel Pump


Applications:


WZ Series is suitable for conveying at a temperature of -20¡æ~+80 ¡æ, viscosity of not more than 5oE without solid particles, volatile, easy gasification of seawater and freshwater. Can be used for ship, petroleum, chemical industry, printing and dyeing industry, hotels, villas and high-rise living water for boiler. This type pump has the advantages of small volume, light weight, strong self-absorption, can be equipped with motor, gasoline engine, diesel engine as power.



Model Explanantion


for example 1WZ-0.9

1 ¡ª the pump inlet diameter (25mm)

W ¡ª marine-type vortex pump

Z ¡ª Self-priming

0.9 ¡ª Intergral value of 1/10 of the specific speed of pump



Main Technical Parameter



Series Name WZ
Product Name Self-priming multilevel vortex pump
Capacity (m3/h) 0.792-27
Head (m) 20-168
Speed (r/min) 1450/1725
Motor power 0.75-30
Application

Applicable to transport vapour-liquid of no causticity, no solid granules, volatile, easy boiloff, for petrol, chemical, printing and dyeing industry, also for transport water for villa, hotel, buildings and for dwarf boiler

Medium tempreture -20¡æ-80¡æ
Certification CCS, BV etc.




Performance Parameter

¡ô Click the link and choose your type¡úWZ Type Performance Parameter

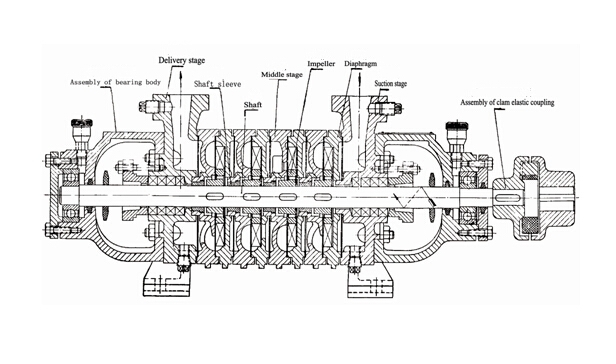

Structure

WZ Marine Self-priming Vortex Multilevel Pump
Our Certification



WZ Marine Self-priming Vortex Multilevel Pump
