WX Marine Centrifugal Vortex Pump


Applications:


WX type pump is single stage double suction cantilever type centrifugal vortex pump, used for transporting temperature less than 105 degrees, viscosity is not more than 5 degrees, E liquid without solid particles.


Model Explanation

for example 62WX-130

62 - outlet diameter 62mm

WX - centrifugal vortex pump

130 - Said pump Head value in the design point is 30m

Main Technical Parameter



Series Name WX
Product Name Centrifugal vortex pump
Model Marine pump HS-65WX-130 Marine pump HS-65WX-140 Marine pump HS-365WX-150
Capacity (m3/h) 6.3/9/11.25 10.8/14.4/18 17.25/21.6/27
Head (m) 173/130/88 186/140/94 200/150/95
Speed (r/min) 2900/3450 2900/3450 2900/3450
Motor power 15 22 30
Overall weight 70/217 70/359 70/390
Application

Applicable to transport liquid, the temperature is not higher than 150¡æ and thickness is not more than 5¡ãE , no causticity, and no solid granule

Medium tempreture Max.150¡æ
Certification CCS, BV etc.

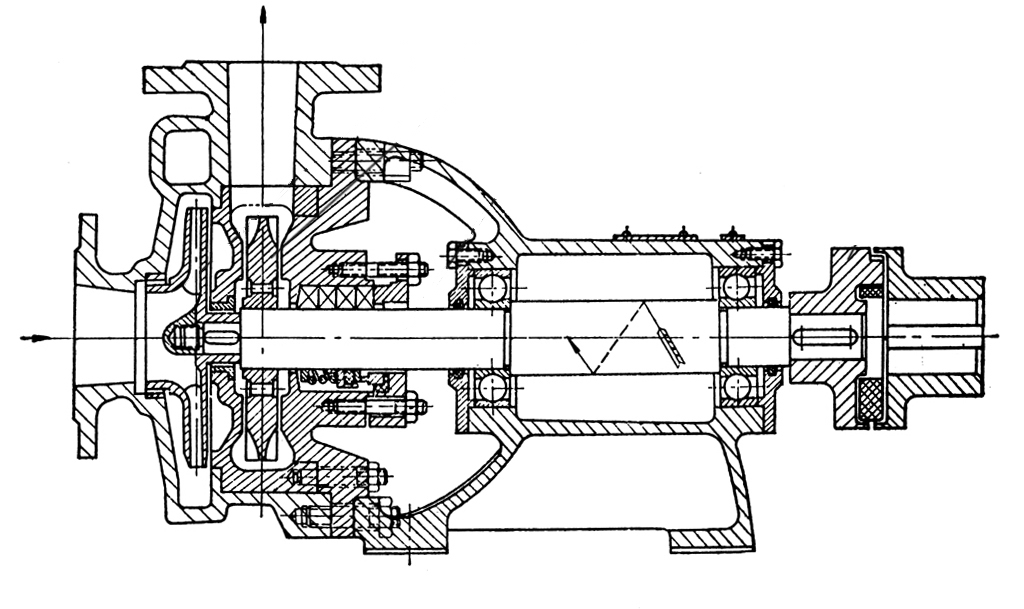

Structure


WX Marine Centrifugal Vortex Pump
