Electric Drive Oil Valve
[Search Related Products]
TG94X style twin seal guide way valve ,it could be served in the rigorous condition such as flammable ,explosive, poisonous, volatile etc, meeting water proof ,explosion proof(d Άς BT4), and anti-static requirements and being widely used in the petroleum, chemical ,natural gas, electric power ,environment protection, military areas.
| Application Temperature | -500C~2000C |
| Operation Temperature | -290C~1210C |

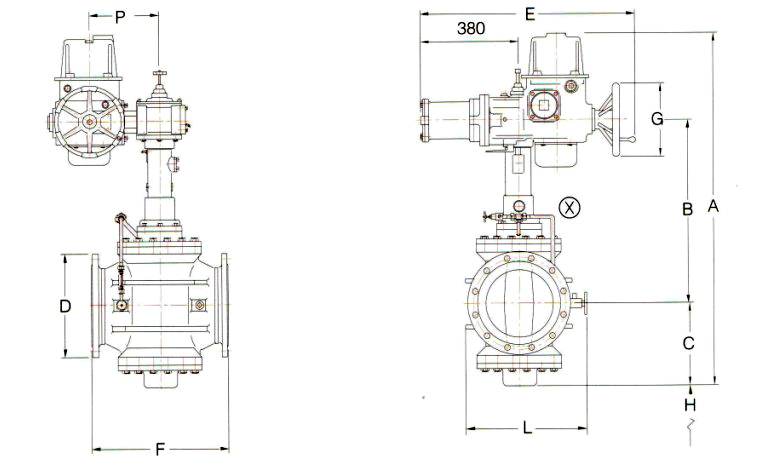

| Operator | Electric Drive Device | Nominal Diameter | Nominal Pressure (Mpa) | A | B | C | D | E | F | G | H | L | P | ¨’ | Weight (kg) | |
| Model | Motor | |||||||||||||||
| KG08AD |
SMC-00/
HA0BC |
1.1 | 400 | 2.5 | 1644 | 925 | 355 | 620 | 911 | 838 | 305 | 440 | 660 | 366 | CX1-1/2 | 1451 |
| 400 | 4.0 | 1644 | 925 | 355 | 620 | 911 | 838 | 305 | 440 | 660 | 366 | CX1-1/2 | 1470 | |||
| 450 | 2.5 | 1909 | 1025 | 520 | 670 | 911 | 914 | 305 | 330 | 698 | 366 | CX1-1/2 | 1670 | |||
| 450 | 4.0 | 1909 | 1025 | 520 | 670 | 911 | 914 | 305 | 330 | 698 | 366 | CX1-1/2 | 1700 | |||
| 600 | 1.6 | 2109 | 1120 | 625 | 840 | 911 | 1067 | 305 | 500 | 1067 | 366 | CX1-1/2 | 3102 | |||
| KG10D |
SMC1/
HA0BC |
2.2 | 500 | 2.5 | 2233 | 1220 | 620 | 730 | 1052 | 911 | 305 | 355 | 863 | 466 | CX1-1/2 | 2172 |
| 500 | 4.0 | 2233 | 1220 | 620 | 730 | 1052 | 911 | 305 | 355 | 863 | 466 | CX1-1/2 | 2205 | |||
| 600 | 2.5 | 2393 | 1350 | 650 | 845 | 1052 | 1143 | 305 | 430 | 1040 | 466 | CX1-1/2 | 4070 | |||
| 600 | 4.0 | 2393 | 1350 | 650 | 845 | 1052 | 1143 | 305 | 430 | 1040 | 466 | CX1-1/2 | 4114 | |||
