Worn Gear Operated General Valve
[Search Related Products]
This valve can greatly lease the working intension. It is widely used in city gas supplying pipeline,
Petroleum chemical pipeline and port storerooms oil supplying system areas.

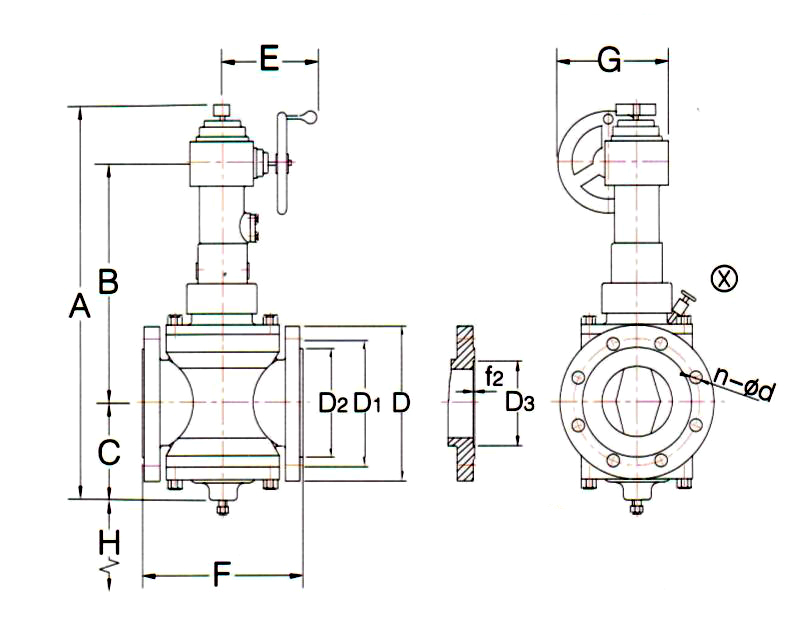

1. H is the minimum space for changing valve slips;
2. F could be variable according to the different codes.
Application Temperature | -500C~2000C |
Operation Temperature | -290C~1210C |
1.6 Mpa
Nominal Diameter | Operator | A | B | C | D | D1 | D2 | n-§¶d | F | E | G | H | ¨’ | Weight (kg) | |
¢ñ | ¢ò | ||||||||||||||
50 | KG04J | 726 | 400 | 153 | 165 | 125 | 99 | 4-§¶18 | 178 | 203 | 265 | 240 | 80 | 3/8' | 48 |
65 | KG04J | 726 | 400 | 153 | 185 | 145 | 118 | 4-§¶18 | 190 | 222 | 265 | 240 | 80 | 3/8' | 55 |
80 | KG04J | 726 | 400 | 153 | 200 | 160 | 132 | 8-§¶18 | 203 | 241 | 265 | 240 | 80 | 3/8' | 53 |
100 | KG05J | 904 | 528 | 193 | 220 | 180 | 156 | 8-§¶18 | 229 | 305 | 265 | 350 | 125 | 1/2' | 93 |
125 | KG05J | 933 | 538 | 206 | 250 | 210 | 184 | 8-§¶18 | 254 | 356 | 265 | 350 | 140 | 1/2' | 108 |
150 | KG05J | 976 | 558 | 229 | 285 | 240 | 211 | 8-§¶22 | 287 | 394 | 265 | 400 | 280 | 1/2' | 153 |
200 | KG06J | 1151 | 635 | 300 | 340 | 295 | 266 | 12-§¶22 | 292 | 457 | 265 | 450 | 300 | 1/2' | 235 |
250 | KG07J | 1325 | 747 | 330 | 405 | 355 | 319 | 12-§¶26 | 330 | 533 | 315 | 450 | 355 | 1/2' | 307 |
300 | KG07J | 1479 | 873 | 375 | 460 | 410 | 370 | 12-§¶26 | 356 | 610 | 315 | 450 | 405 | 1/2' | 313 |
350 | KG08J | 1500 | 876 | 415 | 520 | 470 | 429 | 16-§¶26 | 381 | 686 | 370 | 500 | 480 | 1/2' | 607 |
400 | KG08J | 1804 | 1042 | 470 | 580 | 525 | 480 | 16-§¶30 | 406 | 762 | 370 | 500 | 530 | 1/2' | 738 |
450 | KG08J | 1664 | 967 | 405 | 640 | 585 | 548 | 20-§¶30 | 864 | 864 | 370 | 500 | 355 | 1/2' | 1250 |
500 | KG08J | 1714 | 992 | 430 | 715 | 650 | 609 | 20-§¶33 | 914 | 914 | 370 | 500 | 430 | 1/2' | 1396 |
600 | KG010J | 2285 | 1256 | 640 | 840 | 770 | 720 | 20-§¶36 | 1057 | 914 | 420 | 500 | 430 | 1/2' | 1868 |
2.5 Mpa
Nominal Diameter | Operator | A | B | C | D | D1 | D2 | n-§¶d | E | F | G | H | ¨’ | Weight (kg) |
50 | KG04J | 726 | 400 | 153 | 165 | 125 | 99 | 4-§¶18 | 265 | 230 | 250 | 80 | 3/8' | 53 |
65 | KG04J | 726 | 400 | 153 | 185 | 145 | 118 | 8-§¶18 | 265 | 241 | 250 | 80 | 3/8' | 62 |
80 | KG04J | 726 | 400 | 153 | 200 | 160 | 132 | 8-§¶18 | 265 | 283 | 250 | 80 | 3/8' | 78 |
100 | KG05J | 904 | 528 | 193 | 235 | 190 | 156 | 8-§¶22 | 265 | 305 | 400 | 115 | 1/2' | 110 |
125 | KG06J | 933 | 538 | 206 | 270 | 220 | 184 | 8-§¶26 | 265 | 400 | 400 | 200 | 1/2' | 173 |
150 | KG06J | 976 | 558 | 229 | 300 | 250 | 211 | 8-§¶26 | 265 | 403 | 450 | 200 | 1/2' | 183 |
200 | KG07J | 1151 | 635 | 300 | 360 | 310 | 274 | 12-§¶26 | 315 | 419 | 450 | 280 | 1/2' | 283 |
250 | KG07J | 1320 | 795 | 315 | 425 | 370 | 330 | 12-§¶30 | 315 | 457 | 450 | 330 | 1/2' | 400 |
300 | KG08J | 1610 | 925 | 420 | 485 | 430 | 389 | 16-§¶33 | 370 | 502 | 450 | 405 | 1/2' | 687 |
350 | KG08J | 1480 | 875 | 370 | 555 | 490 | 448 | 16-§¶36 | 370 | 762 | 500 | 380 | 1/2' | 975 |
400 | KG08J | 1550 | 925 | 355 | 620 | 550 | 503 | 16-§¶36 | 370 | 838 | 500 | 440 | 1/2' | 1330 |
450 | KG08J | 1800 | 1025 | 520 | 670 | 600 | 548 | 20-§¶36 | 370 | 914 | 500 | 330 | 1/2' | 1520 |
500 | KG10J | 2250 | 1220 | 620 | 730 | 660 | 609 | 20-§¶36 | 420 | 991 | 500 | 355 | 1/2' | 1900 |
600 | KG10J | 2285 | 1256 | 640 | 845 | 770 | 720 | 20-§¶36 | 420 | 1143 | 500 | 370 | 1/2' | 2168 |
4 Mpa
Nominal Diameter | Operator | A | B | C | D | D1 | D2 | n-§¶d | D3 | f2 | E | F | G | H | ¨’ | Weight (kg) |
50 | KG04J | 726 | 400 | 153 | 165 | 125 | 99 | 4-§¶18 | 88 | 3 | 265 | 230 | 250 | 80 | 3/8' | 49 |
65 | KG04J | 726 | 400 | 153 | 185 | 145 | 118 | 8-§¶18 | 110 | 3 | 265 | 283 | 250 | 80 | 3/8' | 58 |
80 | KG04J | 726 | 400 | 153 | 200 | 160 | 132 | 8-§¶18 | 121 | 3 | 265 | 283 | 250 | 80 | 3/8' | 75 |
100 | KG05J | 904 | 528 | 193 | 235 | 190 | 156 | 8-§¶22 | 150 | 3.5 | 265 | 305 | 400 | 115 | 1/2' | 115 |
125 | KG06J | 933 | 538 | 206 | 270 | 220 | 184 | 8-§¶26 | 176 | 3.5 | 315 | 403 | 450 | 200 | 1/2' | 180 |
150 | KG06J | 976 | 558 | 229 | 300 | 250 | 211 | 8-§¶26 | 204 | 3.5 | 315 | 403 | 450 | 200 | 1/2' | 197 |
200 | KG07J | 1151 | 635 | 300 | 360 | 320 | 284 | 12-§¶30 | 260 | 3.5 | 315 | 419 | 450 | 280 | 1/2' | 305 |
250 | KG07J | 1320 | 795 | 315 | 425 | 385 | 345 | 12-§¶33 | 313 | 3.5 | 315 | 457 | 450 | 330 | 1/2' | 477 |
300 | KG08J | 1610 | 925 | 420 | 485 | 450 | 409 | 16-§¶33 | 364 | 3.5 | 370 | 502 | 450 | 405 | 1/2' | 703 |
350 | KG08J | 1480 | 875 | 370 | 555 | 510 | 465 | 16-§¶36 | 422 | 4 | 370 | 762 | 500 | 380 | 1/2' | 1035 |
400 | KG08J | 1550 | 925 | 355 | 620 | 585 | 535 | 16-§¶39 | 474 | 4 | 370 | 838 | 500 | 440 | 1/2' | 1430 |
450 | KG08J | 1800 | 1025 | 520 | 670 | 610 | 560 | 20-§¶39 | 524 | 4 | 370 | 914 | 500 | 330 | 1/2' | 1650 |
500 | KG10J | 2250 | 1220 | 620 | 730 | 670 | 615 | 20-§¶42 | 576 | 4 | 420 | 991 | 500 | 355 | 1/2' | 2006 |
600 | KG10J | 2285 | 1256 | 640 | 845 | 795 | 735 | 20-§¶48 | 676 | 4 | 420 | 1143 | 500 | 355 | 1/2' | 2250 |
6.4 Mpa
Nominal Diameter | Operator | A | B | C | D | D1 | D2 | n-§¶d | D3 | f2 | E | F | G | H | ¨’ | Weight (kg) |
50 | KG06J | 721 | 399 | 150 | 175 | 135 | 105 | 4-§¶22 | 88 | 4 | 265 | 292 | 250 | 80 | 1/2' | 95 |
65 | KG06J | 730 | 399 | 150 | 200 | 160 | 130 | 8-§¶22 | 110 | 4 | 265 | 330 | 250 | 80 | 1/2' | 110 |
80 | KG06J | 755 | 405 | 178 | 210 | 170 | 140 | 8-§¶22 | 121 | 4 | 265 | 356 | 250 | 80 | 1/2' | 120 |
100 | KG06J | 934 | 637 | 196 | 250 | 200 | 168 | 8-§¶24 | 150 | 4.5 | 265 | 432 | 400 | 115 | 1/2' | 180 |
125 | KG06J | 1228 | 656 | 260 | 295 | 240 | 202 | 8-§¶30 | 176 | 4.5 | 315 | 508 | 450 | 200 | 1/2' | 210 |
150 | KG06J | 1288 | 656 | 260 | 340 | 280 | 240 | 8-§¶33 | 204 | 4.5 | 315 | 559 | 450 | 200 | 1/2' | 325 |
200 | KG07J | 1322 | 759 | 250 | 405 | 345 | 300 | 12-§¶33 | 260 | 4.5 | 315 | 660 | 450 | 280 | 1/2' | 482 |
250 | KG08J | 1697 | 858 | 310 | 470 | 400 | 352 | 12-§¶39 | 313 | 4.5 | 315 | 787 | 450 | 330 | 1/2' | 726 |
300 | KG08J | 1705 | 858 | 310 | 530 | 460 | 412 | 16-§¶39 | 364 | 4.5 | 370 | 838 | 450 | 405 | 1/2' | 985 |
350 | KG10J | 2108 | 1193 | 495 | 595 | 525 | 475 | 16-§¶39 | 422 | 5 | 370 | 889 | 500 | 380 | 1/2' | 1435 |
400 | KG10J | 2118 | 1193 | 495 | 670 | 585 | 525 | 16-§¶45 | 474 | 5 | 370 | 991 | 500 | 440 | 1/2' | 1830 |
10 Mpa
Nominal Diameter | Operator | A | B | C | D | D1 | D2 | n-§¶d | D3 | f2 | E | F | G | H | ¨’ | Weight (kg) |
50 | KG06J | 721 | 399 | 150 | 165 | 127 | 103 | 4-§¶20 | 93.7 | 5 | 265 | 292 | 250 | 80 | 1/2' | 95 |
65 | KG06J | 730 | 399 | 150 | 190 | 149 | 116 | 8-§¶22 | 106.4 | 5 | 265 | 330 | 250 | 80 | 1/2' | 110 |
80 | KG06J | 755 | 405 | 178 | 210 | 168.5 | 138 | 8-§¶22 | 128.6 | 5 | 265 | 356 | 250 | 80 | 1/2' | 120 |
100 | KG06J | 934 | 637 | 196 | 275 | 216 | 168 | 8-§¶26 | 158.8 | 5 | 265 | 432 | 400 | 115 | 1/2' | 80 |
125 | KG06J | 1228 | 656 | 260 | 330 | 267 | 197 | 8-§¶30 | 187.3 | 5 | 315 | 508 | 450 | 200 | 1/2' | 210 |
150 | KG06J | 1288 | 656 | 260 | 355 | 292 | 227 | 8-§¶33 | 217.5 | 5 | 315 | 559 | 450 | 200 | 1/2' | 325 |
200 | KG07J | 1322 | 759 | 250 | 420 | 349 | 281 | 12-§¶30 | 217.5 | 5 | 315 | 660 | 450 | 280 | 1/2' | 482 |
250 | KG08J | 1697 | 858 | 310 | 510 | 432 | 335 | 12-§¶36 | 325.4 | 5 | 315 | 787 | 450 | 330 | 1/2' | 726 |
300 | KG08J | 1705 | 858 | 310 | 560 | 489 | 392 | 20-§¶36 | 382.6 | 5 | 370 | 838 | 500 | 405 | 1/2' | 985 |
350 | KG10J | 2108 | 1193 | 495 | 605 | 527 | 424 | 20-§¶39 | 414.3 | 5 | 370 | 889 | 500 | 380 | 1/2' | 1435 |
400 | KG10J | 2118 | 1193 | 495 | 685 | 603 | 481 | 20-§¶42 | 471.5 | 5 | 370 | 991 | 500 | 440 | 1/2' | 1830 |
