Electric Magnetic Lifter for Scraps

Electric magnetic lifter for scraps is extremely convenient in handling different kinds of scrap such as pig-iron, steel turnings, ingots, slabs, cut-pieces of plates and so on. It is influenced by air gaps between the loose pieces of scrap. Therefor, it has larger diameter to overcome this drawback. The lifting capacity is also reduced if the scrap material is porous or contains high percentage of carbon.

Product Details:

1. Item: Electric magnetic lifter for scraps

2. Shape: Circular

3. Power: 3.3KW

4. Rated Voltage: 220V

5. Normal temperature: Below 100℃

6. Braking load is 4 times of working load limited

7. Usage: Lifting

8. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects

2. When lifting, the working current should achieve the rated value to start lifting.

3. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.

4 .Carefully check each part, the damaged parts should be replaced timely .

5. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Specification:

Current	Power	Lifting Capacity(kg)			Dimension(mm)
A	KW	Steel ball	Steel ingot	Crop end	A	B	C	D	E
15	3.3	2500	380/220	120/100	700	800	160	90	30
18	3.96	3000	480/250	150/130	800	800	160	90	30
26.6	5.9	4500	650/440	250/200	900	1090	200	125	40
35	7.7	6500	1000/800	450/400	1100	1140	220	150	45
45.5	10	7500	1300/1000	600/500	1200	1180	220	150	45
54	12	8500	1400/1100	700/60	1300	1240	250	175	50
71.2	15.6	11000	1900/1500	1100/900	1500	1250	350	210	60
75	16.5	12500	2300/1800	1300/1100	1650	1590	370	230	75
102	22.5	14500	2750/2100	1600/1350	1800	1490	370	230	75
129	28.4	21000	3500/2800	2200/1850	2100	1860	400	250	80
154	33.9	28000	4800/3800	2850/2250	2400	2020	450	280	90

Electric Magnetic Lifter for Scraps

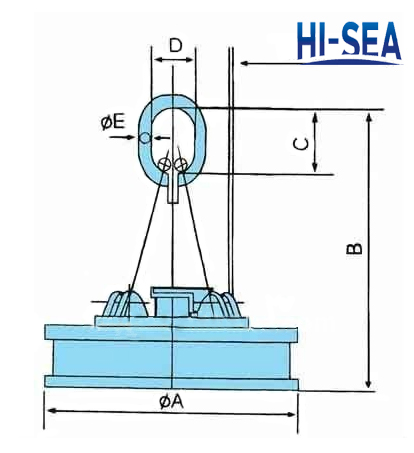

Sketch of the electric magnetic lifter for scraps
