Handle Type Magnetic Lifter

Handle Type Magnetic Lifter

Handle type magnetic lifter is most suitable to move materials and semi-finished products such as black steel plaate, flat iron and other materials etc. The holding power of it depends on the attractive face, quality and thickness of material and clearance between the material and magnet. The workpiece must be thick enough and the surface must be free of dust, magnetic attraction is best with low carbon soft steel.

Product Details:

1. Item: Handle type magnetic lifter

2. Type: Permanent

3. Power source: Magnet

4. Capacity: 60kg-120kg

5. Usage: Lifting

6. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects

2. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.

3. Carefully check each part, the damaged parts should be replaced timely .

4. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Specification:

Magnetic force(kg)	Weight(kg)	L(mm)	W(mm)	H(mm)
60	1	58	50	55
80	1.1	60	50	55
100	1.3	74	50	55
120	2	118	50	55

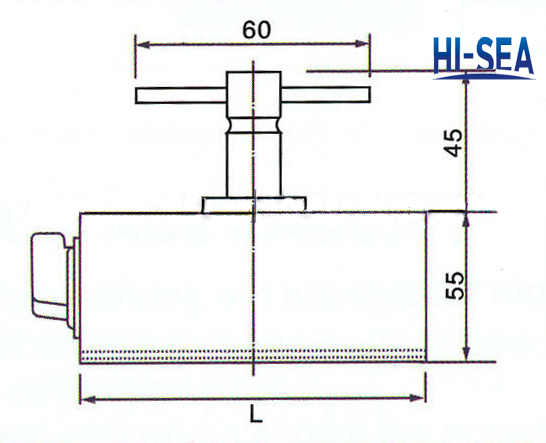

Sketch of the handle type magnetic lifter
