Magnetic Lifter
[Search Related Products]
Magnetic Lifter
We are a professional magnetic lifter manufacturer, have been in the field since 1996. To meet the increasing demands of clients, we have manufactured a variety of magnetic lifter.

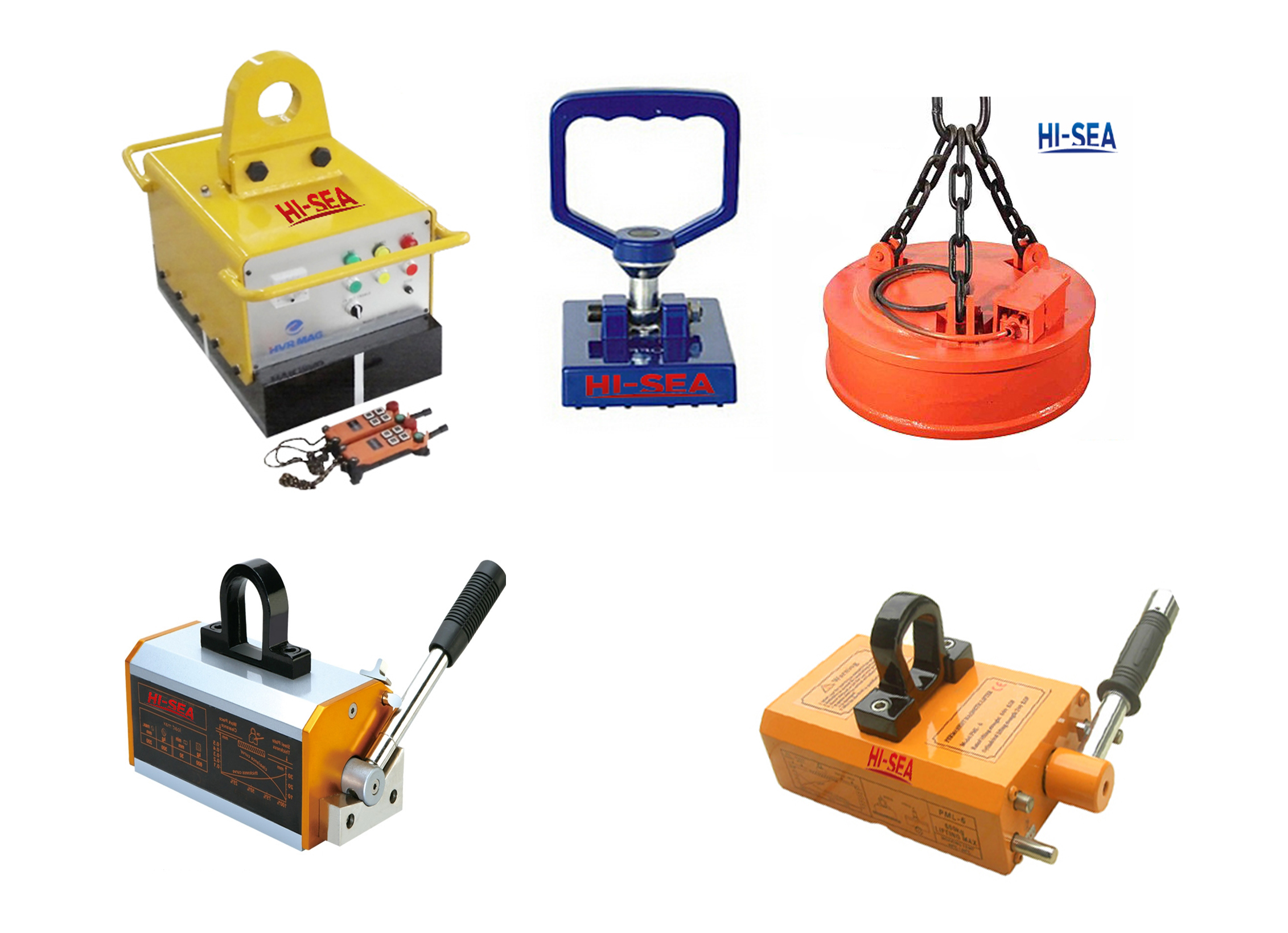

Magnetic lifter can be divided into manual permanent magnetic lifter and automatic permanent magnetic lifter. Through the application of permanent magnetic material，the volume of magnetic lifter become smaller. And because the magnetic force will not failure, so the lifting force it can provide greatly strengthened. The application of the product completely eliminate the consumption of electricity, therefore it will not be plagued by power cuts.That makae it more convenient. And the professional design make it become more elegant, especially outstanding on the basic decoration
In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document. All the procedures from raw material purchase to delivery will be strictly examed.
For more information about magnetic lifters, please don’t hesitate to contact us.
The main products of magnetic lifter are as follows:
|
Permanent Multi Magnetic Circuit Lifter |
|
Handle Type Magnetic Lifter |
|
Permanent Magnetic Lifter for Steel Plate |
|
Automatic Magnetic Lifter for Large Steel Plate |
|
Electric Magnetic Lifter for Steel Plate |
|
Portable Steel Plate Magnetic Lifter |
|
The Rare Earth Permanent Magnetic Lifter |
|
Permanent Double Magnetic Circuit Lifter |
|
Battery Electric Permanent Magnetic Lifter |
|
Electric Magnetic Lifter for Scraps |
|
Cam Type Magnetic Lifter |
|
Automatic Permanent Magnetic Lifter |
|
Electro Permanent Magnetic Lifter |
|
Manual Permanent Magnetic Lifter |
| Specification: | ||||||||
| Capacity(kg) | Weight(kg) | B(mm) | F(mm) | G(mm) | H1(mm) | H2(mm) | L(mm) | R(mm) |
| 100 | 3 | 92 | 35 | 28 | 67 | 54 | 64 | 148 |
| 300 | 7.5 | 162 | 47 | 40 | 91 | 70 | 92 | 180 |
| 600 | 23 | 233 | 64 | 50 | 118 | 95 | 122 | 185 |
| 1000 | 55 | 268 | 64 | 50 | 164 | 95 | 179 | 210 |
| 2000 | 125 | 378 | 80 | 60 | 212 | 120 | 234 | 365 |
Electro Permanent Magnetic Lifter
| Specification: | ||||||
| Capacity(kg) | B.L(kg) | N.W.(kg) | B(mm) | H(mm) | L(mm) | R(mm) |
| 400 | 1200 | 9.2 | 94 | 92 | 200 | 190 |
| 600 | 1800 | 18.2 | 112 | 115 | 260 | 220 |
| 1000 | 3000 | 33 | 143 | 136 | 310 | 245 |
| 2000 | 6000 | 69.4 | 164 | 166 | 400 | 335 |
| 3000 | 7500 | 88 | 173 | 196 | 490 | 335 |
| 5000 | 12500 | 197 | 231 | 215 | 600 | 550 |
Manual Permanent Magnetic lifter
| Specification: | ||||||||
| Capacity(kg) | Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
| 500 | 135 | 510 | 180 | 582 | 352 | 26 | 46 | 92 |
| 1000 | 195 | 510 | 210 | 582 | 390 | 26 | 50 | 92 |
| 1500 | 240 | 665 | 210 | 735 | 390 | 26 | 50 | 92 |
| 2000 | 255 | 680 | 320 | 750 | 500 | 26 | 50 | 112 |
| 3000 | 430 | 770 | 360 | 850 | 500 | 30 | 56 | 125 |
| 5000 | 610 | 920 | 420 | 1000 | 580 | 34 | 80 | 141 |
Automatic Permanent Magnetic Lifter
| Specification: | |||
| Rated capacity(kg) | Weight(kg) | Working voltage(V) | Recharge time(h) |
| 500 | 50 | DC24 | 5-7 |
| 1000 | 75 | DC24 | 5-7 |
| 1500 | 120 | DC24 | 6-8 |
| 2000 | 145 | DC24 | 6-8 |
| 3000 | 195 | DC48 | 7-9 |
| 5000 | 350 | DC48 | 7-9 |
| 6000 | 430 | DC48 | 7-9 |
