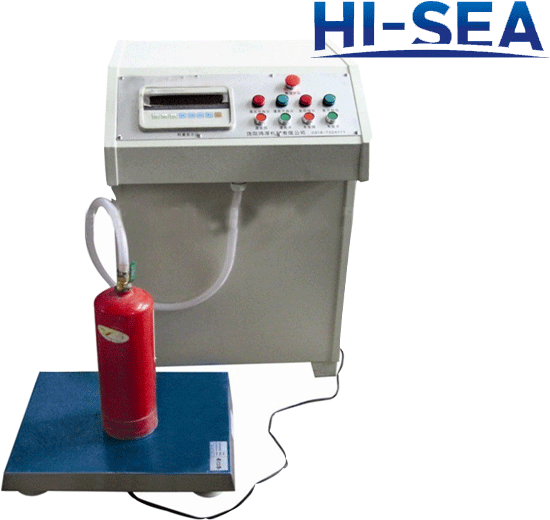

Foam Type Fire Extinguisher Filling Machine

Foam Type Fire Extinguisher Filling Machine

Foam filling machine apply for positive pressure injection spray technology to mix the liquid medicine and water equably according to the filling requirement of liquid cylinder. It uses injection excess pressure to implement the liquid filling of fire extinguisher. This machine equipped with high precision electronic scale, which can measure the filled liquid medicine and stop automatically when the liquid filling completion. The machine so popular tody because some unique features like small volume, light,high measuring precision, low labor consumption, high working efficiency,easy operation etc. That is an ideal choice in today's filling field.

Main Technical Parameters

Total storage: 50 L

Power: 90w

Voltage:AC 220 V

Filling Precision: 1kg≤±0.015

Filling Speed:6 kg/min

Volume:600* 580 * 950 mm ( L * W * H )
