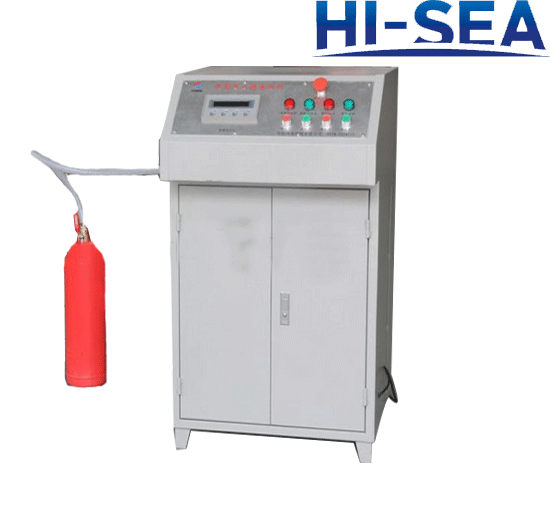

Water Based Fire Extinguisher Filling Machine

Water Based Fire Extinguisher Filling Machine

Water based fire extinguisher filling machine be armed with positive pressure injection spray technology to mix the liquid medicine and water equably according to the filling requirement of liquid cylinder. It uses injection excess pressure to implement the liquid filling of fire extinguisher. This model is equipped with high precision electronic scale which can measure the filled liquid and stop atomatically. It is an best advice in filling industry with the advantages like small volume, light, high measuring precision, low energy consumption, fast filling speed, easy control and so on.

Main Technical Parameters

Volume:600 * 580 * 950

Liquid Storage Capacity: 50L

Powder: 90W

Voltage: AC 220 V

Filling Speed: 6kg/min

Filling Precision:1kg≤±0.015

Maintenance

I.Rubbish is forbidden inside the filling pipe during work.

II.The electronic scale don't allow to work under the condition of humid, vibrating and swing location in order to avoid damage of component and precision.

III. No water or litter inside the electronic component and indicator so as to avoid electric leakage and component damage.

IV. Check whether pumps and solenoid valves work normally or not after 50hs running.
