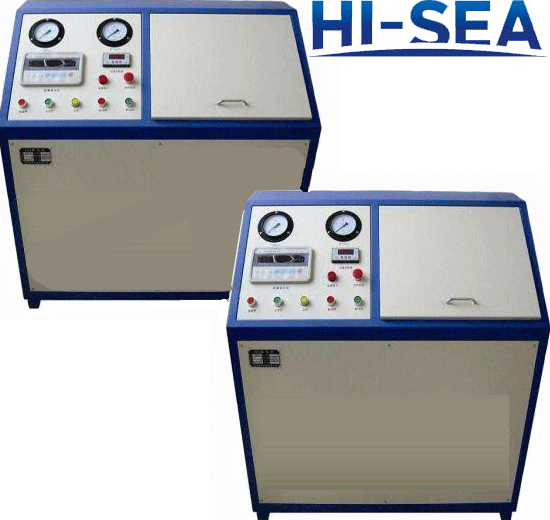

GTM-D Co2 Fire Extinguisher Filling Machine

GTM-D Co2 Fire Extinguisher Filling Machine

Description

The model GTM-D carbon dioxide fire extinguisher filling machine is a special-purpose equipment for filling the carbon dioxide fire extinguishing agent automatically into model MT2-MT7 etc. portable type extinguisher. This machine adopts low temperature freeze technique to convert the high pressure carbon dioxide fire extinguisher agent in the gas storing cylinder into low-temperature ,low pressure pure liquid state carbon dioxide through the low temperature conversion device in the machine and fill it into the low-temperature fire extinguisher. It does not need heating, pressuring and has safe , reliable, rapid filling speed, accurate metering, high work efficiency. It is an best filling equipment for carbon dioxide fire extinguisher production and maintenance factories.

Main Technical Parameters

Filling time and filling amount error table of the filling machine.

Parameter Size Item

MT2

MT3

MT5

MT7

Fire extinguishing agent weight (Kg)

0

2¡ª-0.15

0

3¡ª-0.15

0

5¡ª-0.2

0

7¡ª-0.2

Filling time(s)

¡Ü40

¡Ü50

¡Ü60

¡Ü70

Voltage:AC 220 50 Hz

Working Pressure: 3-10 Mpa

Ambient temperature: 5¡æ-45 ¡æ

Freezing range: 10 ¡æ-15¡æ
