Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

This ship wharf ladder is made with aluminum alloy and it is used to embark and disembark for personnel when various types of vessels moor alongside a deck. It has a light weight and is easy to move. It meets the requirements of JIS F2613-1976.

Features:

1. Standard: CB*3116-82

2. Certificate: CCS, BV, ABS, RINA, DNV, NK, GL, LR, etc.

3. Type: A8, A10, A12.5, A15

4. Length: 8m-15m

5. Customized sizes

6. OEM service available

Drawing and specifications:

Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

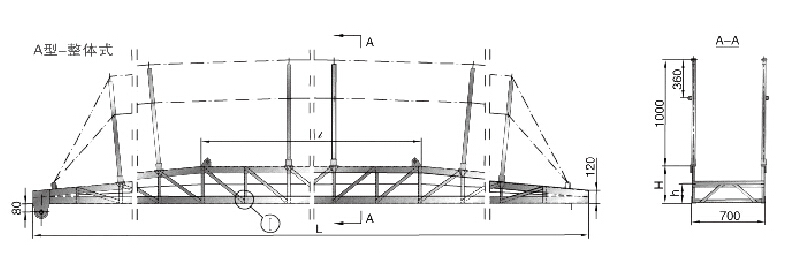

Drawing of Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

Model

Main Size (mm)

Weight

L

I

H

h

A8

8000

3200

350

180

182

A10

10000

4830

500

250

221

A12.5

12500

4830

550

300

296

A15

15000

7230

750

500

362

Identification example:

Length L=8000mm for A Type aluminum wharf ladder----aluminum wharf ladder A8 CB*3116-82

Product showing:

Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

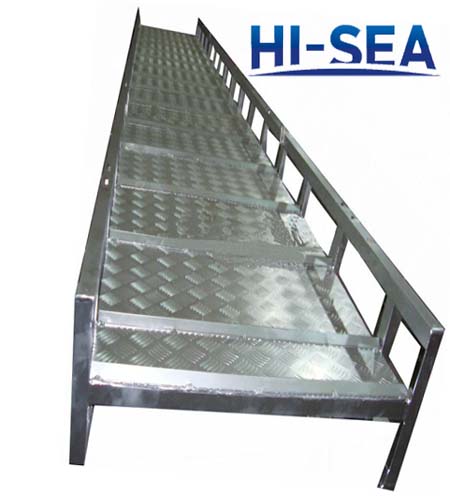

Ship Aluminum Wharf Ladder

Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

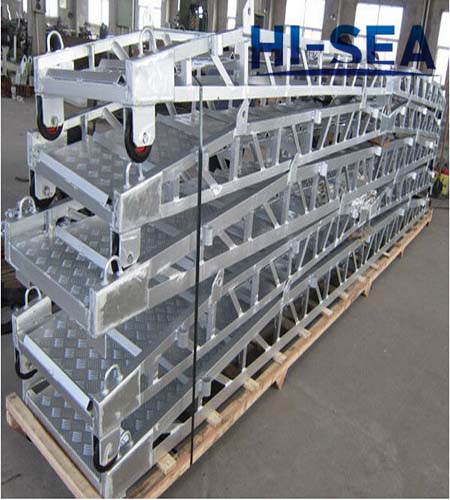

Aluminum Alloy Boarding Step for Boat

Fully-fixed Type Marine Aluminum Alloy Wharf Ladder

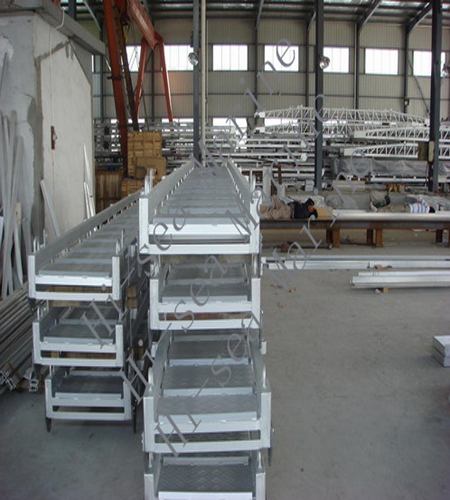

Aluminum Alloy Vessel Gangway
