Marine Aluminum Accommodation Ladder

Marine Aluminum Accommodation Ladder

This product is fixing arc step accommodation ladder made of aluminum alloy. It is in conformity with the requirements of standard ISO5488-1979 and is applicable to ships of various types. This marine accommodation ladder has a light weight and high intensity. The steps are fixed arc steps with skid-proof grooves on the surface. All of them are anodized. According to the customer's request, it can be designed as vertical flip type, flat place type and telescopic type.

Features:

1. Material: aluminum

2. Step: fixed arc step with skid-proof grooves, anodized

3. Handrail: rope/steel/aluminum

4. Standard: CB/T14360-93

5. Certificates: CCS, BV, ABS, RINA, GL, LR, NK, KR, etc.

6. OEM service available

Drawing and specifications:

Marine Aluminum Accommodation Ladder

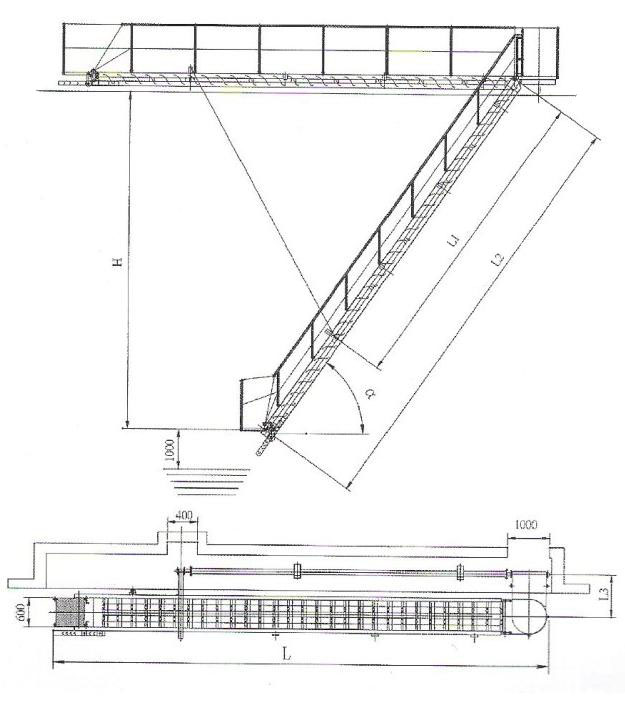

Drawing of Marine Aluminum Accommodation Ladder

Number of Steps

L1 (mm)

Max. Height (H:mm)

L (mm)

h (mm)

Weight (kg)

12

3600

3500

5290

250

320

14

4200

4100

5890

250

330

16

4800

4590

6490

250

340

18

5400

5080

7090

250

530

20

6000

5800

7690

250

560

22

6600

6300

8290

250

580

24

7200

6800

8890

250

600

28

8400

7800

10090

250

780

32

9600

8800

11290

250

850

36

10800

9800

12490

320

890

40

12000

10800

13690

320

970

44

13200

11800

14890

350

1180

48

14400

12800

16090

350

1260

52

15600

13800

17290

420

1370

Identification example:

Number of steps=36, L1=900mm for aluminum accommodation ladder-----marine aluminum accommodation ladder 36-900 CB/T14360-93

Product displaying:

Marine Aluminum Accommodation Ladder

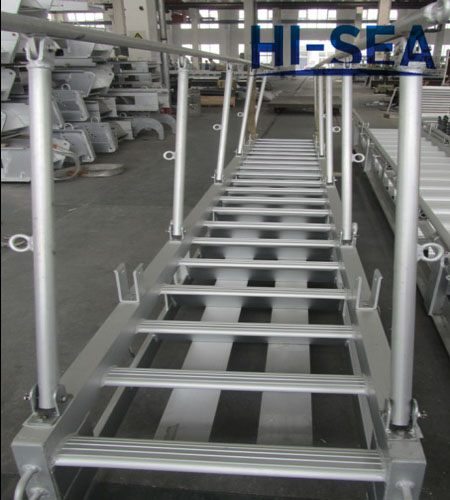

Ship Aluminum Accommodation Ladder

Marine Aluminum Accommodation Ladder

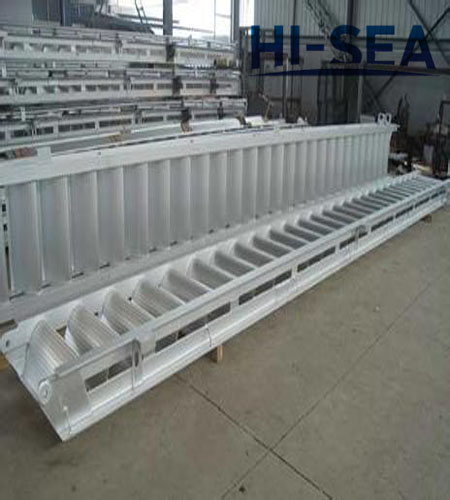

Vessel Aluminum Accommodation Ladder

Marine Aluminum Accommodation Ladder

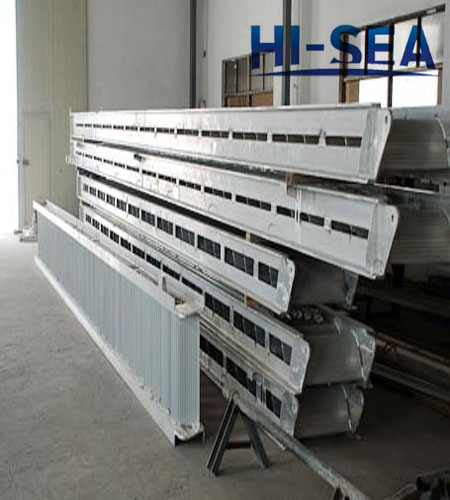

Fixing Arc Step Aluminum Alloy Accommodation Ladder
