Marine Cargo Hold & Oil Tank Vertical Ladder

Marine Cargo Hold & Oil Tank Vertical Ladder

This vertical ladder is used in cargo hold or oil tank of ships. It has a reliable structure and good strength. Approved by the CB*3218-84 standard, it accords with the requirements of ISO3797-1976. Certificates like ABS, CCS, BV, DNV, LR, GL, KR, and NK are offered according to customers’ requirement. Besides, we can customize this vertical ladder to meet the clients’ demand.

Features:

1. Material: steel, iron

2. Standard: CB*3218-84

3. Great load-bearing capacity

4. Types: type A---oil tank angle steel vertical ladder, type B---cargo hold angle iron vertical ladder, type C---cargo hold flat-bulb steel vertical ladder

5. Size: 1200mm—6000mm

Drawing and specifications:

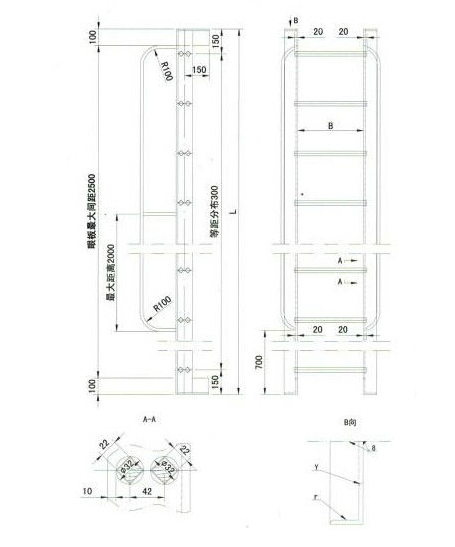

Drawing of Marine Cargo Hold & Oil Tank Vertical Ladder

Type	Name	Material specification	Width of ladder B (mm)	Length of ladder L (mm)
A	oil tank angle steel vertical ladder	L100×80×10	300, 400	1200～6000
B	cargo hold angle iron vertical ladder	L80×50×8	300, 400	1200～6000
C	cargo hold flat-bulb steel vertical ladder	L140×35×9	400	2100～6000

Identification example:

Length=5400, width=400mm for cargo hold flat-bulb steel vertical ladder-----marine cargo hold vertical ladder C5400×400 CB*3218-84

Product showing:

Vessel Cargo Hold and Oil Tank Vertical Ladder

Certificates:

Marine Cargo Hold & Oil Tank Vertical Ladder
