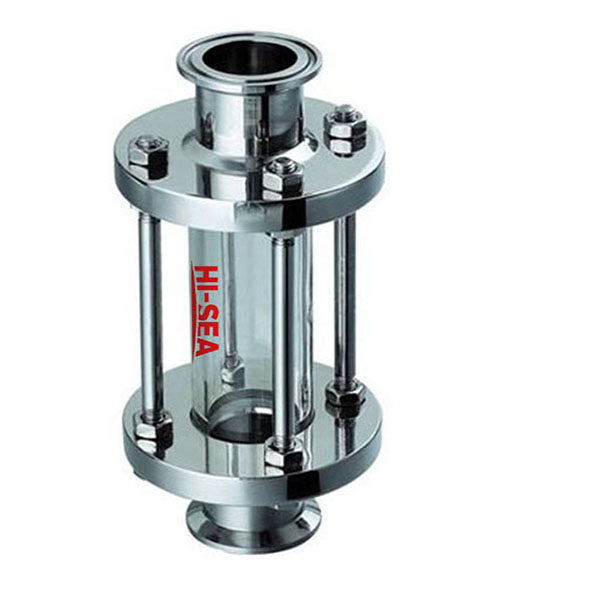

Glass Tube Sightglass

Glass Tube Sightglass：

1.Manufacturing standard:HGJ502-501-86.

2.Connection type:Thread/Flange/Clamp.

3.Flange standard:GB,HG,JIS,ANSI DIN.

4.DN:15mm~300mm.

5.Operation temperature:

▪ Silex glass:-30~800℃;

▪ Borosilicate glass:-30~250℃.

6.Material of construction:

No.

Component

Body

Glass

Sealing gasket

Bolt/Nut

Material

304 304L

316 316L

PTFE, FRPP

Slilex

Borosilicate

NBR Metal

Graphite PTFE

304

316L

7.Drawing of Glass Tube Sightglass:
