Straight Float Ball Sight Glass
[Search Related Products]
1.Manufacturing standard:HGJ502-501-86.
2.Connection type:Flange/Thread/Butt welding.
3.End standard: GB,HG,JIS,ANSI,DIN.
4.DN:20mm¡«500mm.
5.PN:0.6¡«5.0Mpa.
6.Ambient temperature:0¡«250¡æ£¬0¡«800¡æ.
7.Material of construction:
|
No. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Glass |
Sealing gasket |
Bolt/Nut |
|
Material |
A3 pp FRP 304 304L 316 316L |
Boron Quartz silicon |
NBR Metal Graphite PTFE |
304 304L 316 316L |
8.Dimension table:
|
DN |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
|
L/mm |
145 |
189 |
234 |
278 |
278 |
308 |
308 |
364 |
|
H/mm |
200 |
260 |
260 |
320 |
320 |
360 |
360 |
440 |

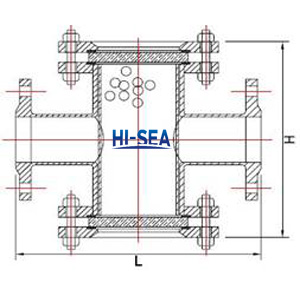

9.Drawing of Straight Float Ball Sight Glass:
