Three Way Sightglass:
1.Manufacturing standard:HGJ502-501-86.
2.Connection type:Flange/Thread/Clamp.
3.End standard: GB,HG,JIS,ANSI,DIN.
4.DN:25mm¡«150mm.
5.Operation temperature:
- Silex glass:-30¡«800¡æ£»
- Borosilicate glass::-30¡«250¡æ.
6.Material of construction:
|
No. |
1 |
2 |
3 |
4 |
|
Component |
Body |
Glass |
Sealing gasket |
Bolt/Nut |
|
Material |
CS 304 304L 316 316L |
Slilex Borosilicate |
NBR Metal Graphite PTFE |
304 316L |
7.Dimension table:
| Size | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 |
| L | 200 | 260 | 260 | 320 | 320 | 360 | 360 | 440 | 440 |
| H | 180 | 226 | 226 | 260 | 260 | 300 | 300 | 360 | 360 |

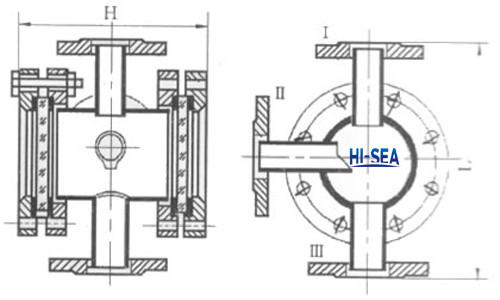

8.Drawing of Three Way Sightglass:
