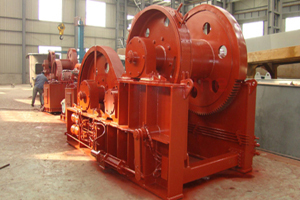

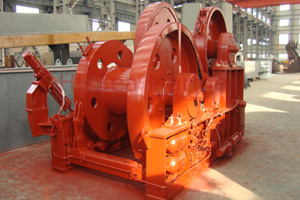

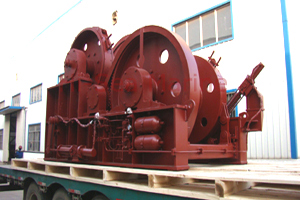

Hydraulic Waterfall Winch
[Search Related Products]
Hydraulic waterfall winch:
Have a rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanisms for brakes and cluthes are desgined for easy and safe manual operation, but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable, and all transferred of external forces to the deck construction is via the foundation bolts. No special welded steel constructions, more flexible for variations winch may occur. This arrangement also has the benefit of making transportation of the winches simpler and less expensive. The manual cluth operating is with spindles for winches for winches from 16 tonnes pulling power and upwards. The winch design provides easy access to all points for lubrication and inspection. Gear may be delivered as open type with steel protection cover, or as totally enclosed gears with oil bath.
Main Technical Specification:
Type |
Rated pull(kN) |
Nominal speed(m/min) |
Drum capacity(mmกมm) |
Holding load(kN) |
Motor power(kW) |

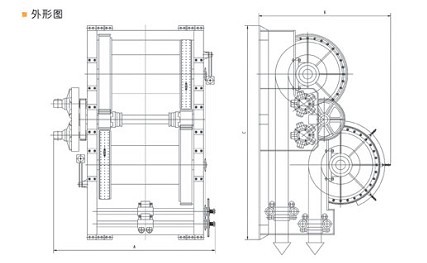

Main dimension(mm) |
Weight(tons) |
HS1-16 |
160 |
7.5 |
28กม500 |
457 |
45 |
3200กม4050กม2200 |
22.5 |
HS1-20 |
200 |
7.5 |
30กม500 |
525 |
55 |
3200กม4050กม2200 |
23.5 |
HS1-25 |
250 |
7.5 |
32กม550 |
598 |
75 |
3600กม4350กม2580 |
27.8 |
HS1-32 |
320 |
7.5 |
36กม600 |
756 |
90 |
3600กม4500กม2600 |
29.6 |
HS1-40 |
400 |
5 |
40กม750 |
934 |
75 |
3700กม4800กม2860 |
35.6 |
HS1-50 |
500 |
5 |
52กม750 |
1460 |
110 |
3900กม4900กม3000 |
39.8 |
HS1-63 |
630 |
5 |
54กม850 |
1700 |
110 |
4000กม5100กม3100 |
42.6 |
HS1-80 |
800 |
5 |
58กม1000 |
1960 |
132 |
4250กม5300กม3300 |
44.7 |
HS1-100 |
1000 |
5 |
64กม1000 |
2310 |
180 |
4550กม5500กม3450 |
46.8 |
HS1-125 |
1250 |
5 |
70กม1200 |
2860 |
220 |
4850กม5800กม3700 |
52.5 |
HS1-130 |
1300 |
5 |
72กม1200 |
2920 |
220 |
5000กม6800กม3800 |
57.2 |
HS1-160 |
1600 |
4 |
82กม1500 |
3786 |
220 |
5200กม7000กม3860 |
63.6 |
HS1-200 |
2000 |
4 |
90กม1500 |
4560 |
250 |
5350กม7200กม4000 |
72.2 |
HS1-250 |
2500 |
4 |
102กม1500 |
5860 |
300 |
5500กม7450กม4200 |
78.5 |
HS1-300 |
3000 |
4 |
110กม1500 |
6810 |
360 |
5800กม7600กม4200 |
82.6 |
