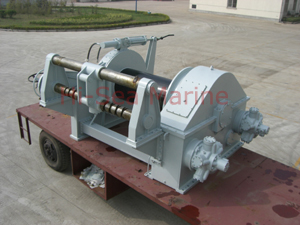

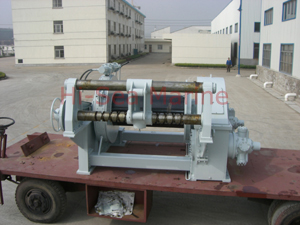

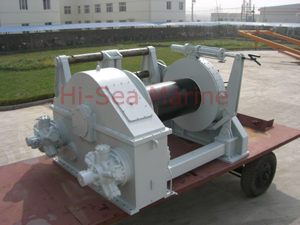

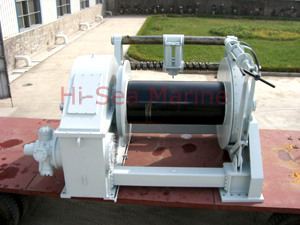

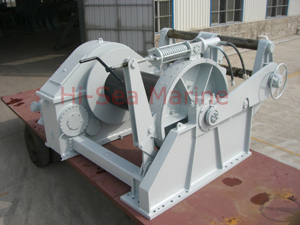

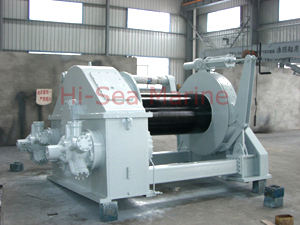

Offshore Towing and Tugger Winch

Offshore Towing and Tugger Winch:

1. For all types of tugs and offshore vessels,also combined with cable lifters. Product range from 5-150 tons.

2. Towing drum, declutchable and with band brake.

3. Automatic/mechanical spooling device

4. Friction cluth and spindle band brake are hydraulically remotely controlled, manual operation of the spindle band brake also possible at the marine winch. The friction cluth assures that in every possible towing situation the drum can be disengaged without endangering the operative driving components.

5. Warping head fixed on the intermediate shaft.

Main technical specification:

Rated Pull(kN)	Rated Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
10	≥12	Ф10х150	5.5
20	≥12	Ф15х150	11
30	≥15	Ф17х150	15
40	≥15	Ф18х150	22
50	≥15	Ф20.5х150	30
75	≥15	Ф26х200	45
80	≥15	Ф26х200	45
100	≥15	Ф30х200	45
125	≥15	Ф30х200	75
160	≥15	Ф32х250	75
200	≥9.6	Ф41х250	75
250	≥9.6	Ф44.5х250	90
315	≥7.8	Ф52х250	90
400	≥7.8	Ф56х250	110
450	≥7.8	Ф56х250	110
500	≥7.8	Ф58х250	110
560	≥6	Ф64х250	132
600	≥6	Ф64х250	132
650	≥6	Ф70х250	132
1000	≥4	Ф85х250	132
1200	≥4	Ф95х250	160
1500	≥4	Ф95х250	200
1800	≥4	Ф95х250	250
2000	≥4	Ф100х250	270
