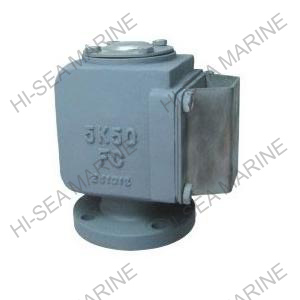

JMarine Cast Iron Air Vent Head JIS-KS91A-121 5k (DN50-DN80)

Marine Cast Iron Air Vent Head JIS-KS91A-121 5k:

1. Basic info:

(1). Material: Cast iron

(2). Design standard: JIS-KS91A-121

(3). Test standard: JIS 7400-1996

(4). Flange size as per JIS B 2220-5K

(5). Flange size of 10K, 16K also available.

(6). DN: 50-80.

2. Fundamental dimensions of Marine Cast Iron Air Vent Head JIS-KS91A-121 5k:

Dimension (mm) Weight (kgs)
DN D2 D3 HT H1 T N-d1
50 105 130 175 127 14 4-15 7.4
65 130 155 204 164 14 4-15 12.6
80 145 180 244 176 14 4-15 16.0

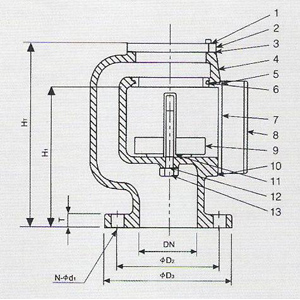

3.Drawing of Marine Cast Iron Air Vent Head JIS-KS91A-121 5k:

4.Certificate available:

JMarine Cast Iron Air Vent Head JIS-KS91A-121 5k (DN50-DN80)
