Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES

Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES:

1.Design standard:CB/T3594-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:50mm-350mm.

5.Main material:

  • Body/Bonnet:FC/FCD;
  • Seat:NBR;
  • Disc:SS304.

6.Application:Oil cabin and water cabin air tube top.

7.Function:Such air vent heads are used for pressure balance.

8.Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES:

DN

mm

Structure dimension

Thicknes

¦Ä/mm

Lift

range

Flange connection dimension

Weight/kg

L/mm

H/mm

D/mm

D1/mm

D2/mm

b/mm

n

d0 /mm

Bunker

Tank

50

160

170

6.5

17

135

103

84

15

6

15

6.24

4.49

140

110

90

16

4

14

6.32

5.02

65

190

200

22

155

123

104

14

6

15

10.37

9.16

160

130

110

16

4

14

10.66

9.23

80

225

205

7.5

27

170

138

118

14

8

15

22.60

19.50

190

150

128

18

4

18

23.01

19.97

100

245

235

8

27

190

158

138

14

8

15

27.40

24.40

210

170

148

18

4

18

29.34

26.30

125

290

265

44

215

183

164

14

10

15

33.70

29.20

240

200

178

20

8

18

35.46

30.96

150

367

300

9

53

240

208

190

14

12

15

39.02

34.92

265

225

202

20

8

18

40.94

36.84

200

463

367

60

295

264

247

15

12

15

63.70

59.62

320

280

258

22

8

18

66.79

62.71

250

550

460

78

365

327

306

16

14

17

90.10

83.20

375

335

312

24

12

18

93.32

86.42

300

650

580

10

85

430

386

360

19

14

21

110.40

103.20

440

395

365

24

12

22

112.67

108.47

350

770

680

95

480

436

410

20

16

21

121.50

112.40

490

445

415

26

12

22

128.02

118.92

9.Drawing of Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES:

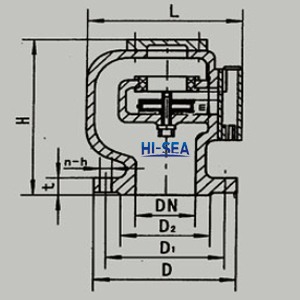

DN50&DN65:

Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES

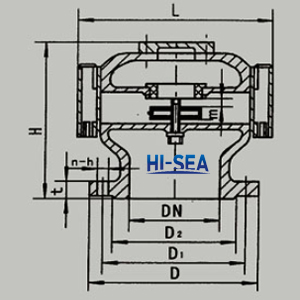

DN80¡ªDN350£º

Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES

10.Certificate available:

Marine Air Vent Head CB/T3594-1994 type D/DS&E/ES
