Marine Air Vent Head For Water Tank CBM1106-82

Marine Air Vent Head For Water Tank CBM1105-82:

1.Design standard:CBM1106-82.

2.End standard:JIS B2211-1977.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-250mm.

6.Main material:

7.Application:Water tank.

8.Function:Such air vent heads are used for pressure balance.

9.Fundamental diemnsions of Marine Air Vent Head For Water Tank CBM1106-82:

DN	Structure dimension		Flange connection dimension					WT	Bolt		Lift range m	Weight（kg）
DN	L	H	D	c	g	n	f	a	n	Th.	Lift range m	Weight（kg）
50	158	173	130	105	88	15	12	6.5	4	M12	17	5.02
65	190	202	155	135	112	15	12	6.5		M12	22	9.16
80	225	206	180	145	125	19	14	7.5		M16	27	14.3
100	250	231	200	165	145		16	8	8		35	15.4
125	325	272	230	200	180		16	8			44	24.2
150	355	315	265	230	210		8	9			53	34.0
200	444	375	320	280	255	23	20			M20	60	57.7
250	550	456	385	345	320	23	22		12	M20	78	82.0

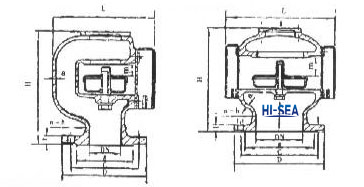

10.Drawing of Marine Air Vent Head For Water Tank CBM1106-82:

11.Certificate available:
