Marine Dial Type Level Gauge
[Search Related Products]
1. Brief Introduction: Marine dial type level gauge is widely used for measuring all kinds of liquid in normally open container.
2. Application: Ship Field.
3. Medium: Diesel Oil, Lub. Oil, Heavy Fuel Oil, Gas Oil, Fresh Water and all non-corrosive liquid.
4. Specification:
|
Range |
1-50 meters |
|
Accuracy |
1.6 Grade |
|
Over Load |
120% Above Max. Range |
|
Dial Diameter |
150 mm |
|
Casing Material |
Stainless Steel 304 AC or Others |

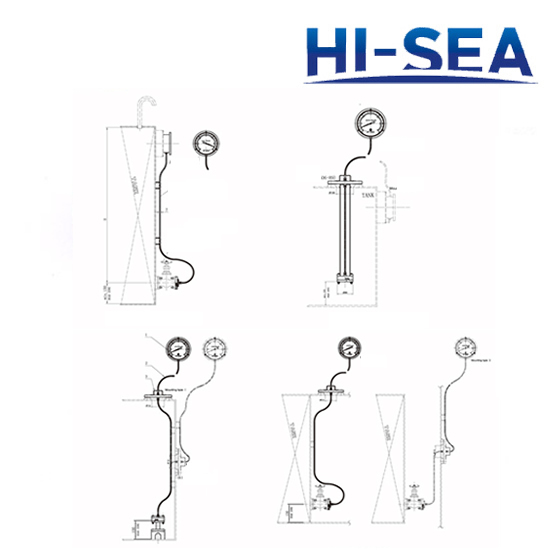

Marine Dial Type Level Gauge Installation: Side-mounted Flange Style, Top-mounted Style(1), (2), Side-mounted With Water Tight Gland Style.
(See the simple drawing)
