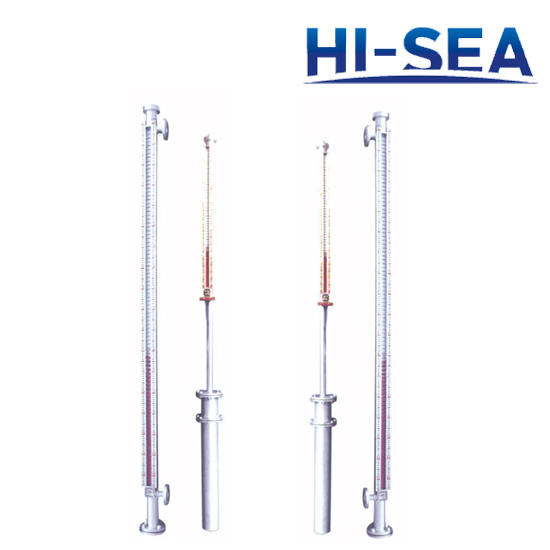

Marine Magnetic Type Level Gauge

Marine Magnetic Type Level Gauge

1. Brief Introduction:

Marine magnetic type level gauge is widely used to measure and control level and show liquidity in the tank.

2. Application: Ship field.

3. Types: conventional type and jacket type.

4. Specification:

Conventional type
Accuracy	±8mm
Measuarement range	500-8000mm
Medium	F.W.,F.O,L.O,D.O.,etc.
Specific gravity of medium	≥0.6/cm^3
Max.working pressrue	0.2Mpa
Test pressure	0.3Mpa
Temperature of working medium	-17℃~+80℃
Connecting flange standard	16020 GB2506-89
Tolerance of nominal length	≤1/1000
Main material	1Cr18Ni9Ti
Drain type	Drain ball valve or drain plug

————————————————————————————————————————————————————————

Jacket
Accuracy	±8mm
Measuarement range	500-8000mm
Medium	F.W.,F.O,L.O,D.O.,etc.
Specific gravity of medium	≥0.6/cm^3
Max.working pressrue	0.2Mpa
Test pressure	0.3Mpa
Working pressure of steam	0.7Mpa
Temperature of working medium	≤300℃
Connecting flange standard	16020 GB2506-89
Tolerance of nominal length	≤1/1000
Steam joint size	M16X1.5,G1/2"
Main material	1Cr18Ni9Ti
Drain type	Drain ball valve or drain plug
