Marine Flat Type Level Gauge

[Search Related Products]

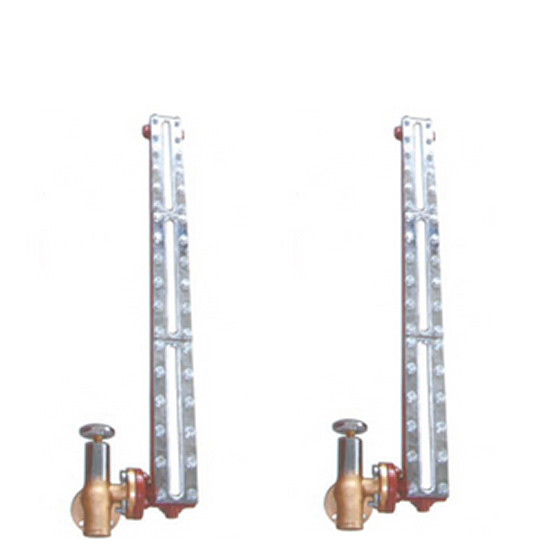

Marine Flat Type Level Gauge

Marine Flat Type Level Gauge


1. Brief Introduction:

Marine flat type level gauge can be widely used in ship to measure and control level in the tank.

2. Standard:

GB/T3746-1996

3. Technical Parameters:

Medium: Fresh Water, Oil etc.

Working Pressure: 0.2 Mpa

Test Pressure: 0.4 Mpa

Main Material: Body Cast Iron HT200

(Self-closing Valve Body:ZQSn10-2)

4. Parts of Marine Flat Type Level Gauge:

No.

Name

1

Self-closing Valve

2

Guide Support

3

Cam Control Device

4

Level Gauge

5

Gas Freeing Pipe


Marine Flat Type Level Gauge

Marine Flat Type Level Gauge
