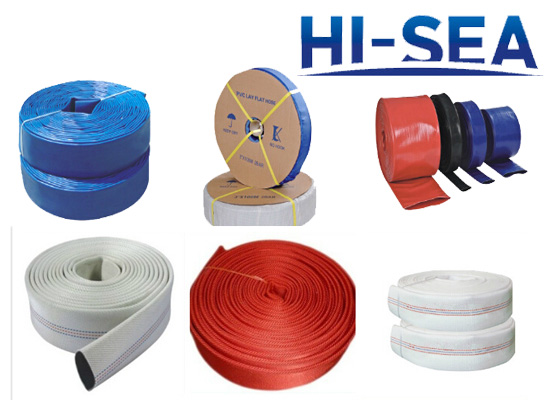

Marine Fire Hose
Marine fire hose refers to the hose used for fire prevention system, water-carriage system, washing down service on the ship and other special fields. Often needs to get various countries¡¯ classification society authenticates like MED, ABS, BV, LR, DNV, KR,NK, GL, CCS, RINA and so on.
Product details:
Place of origin: Chongqing, China (mainland)
Brand name: HI-SEA
Inner lining: RUBBER/PVC/PU
Working pressure(M Pa): 8, 10, 13,16
Length: 10-30m
Color: White, Blue, Black etc.
Characters:
1)The jacket of fire hose is wove by high intensity of polyester filament or polyester short-fiber( twill/plain weave)
2)There are special adhesive ( solid or liquid)between the jacket and the hose. the hose is soft and highly polished,reduce the flow resistance
3) Thinner and more soft, lighter and more convenient to use.
4) High pressure resistance, low temperature resistance, anti-corrosion. aging resistance.wear-resisting
Specifications:
I.D. (Inch/mm) |
Working Pressure (Bar) |
Burst Pressure |
|
1' |
25 |
8/10/13/16 |
24/30/39/48 |
1-1/2' |
38 |
8/10/13/16 |
24/30/39/48 |
2' |
50 |
8/10/13/16 |
24/30/39/48 |
2-1/2' |
65 |
8/10/13 |
24/30/39 |
3' |
75 |
8/10 |
24/30 |
4' |
100 |
8 |
24 |
6' |
150 |
6 |
18 |
8' |
200 |
6 |
18 |
