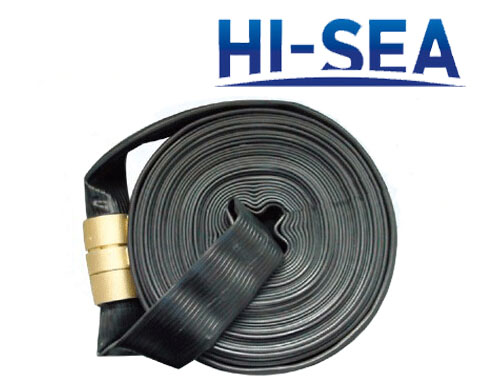

TPR (Thermoplastic rubber) Fire Hose

TPR (Thermoplastic rubber) Fire Hose

TPR is one kind of low hardness hot plasticity rubber(Thermoplastic rubber). The popular name is artifical rubber, which can bear the high or low temperture without pollution, but not be oil resistant. In many fields, TPR fire hose can subtitute rubber fire hose.

Features:

1.Good performance on high temperature resistance up to 135 degree

2.Good performance on low temperature lowest to 40 degree below zero

3.Good resistance to chemical substances

4.Good resistance to UV

5.Small bending radius

6.Highly flexible compressible

7.High tensile strength

8.Rubber finishing

Application:

As suction and transport hose especially ideally for:

1. High temperature industrial fumes, steam

2. High temperature air or smoke in auto

3. Other hot air in engine construction or drying machine

4. Chemical air

5. Cold air

Quick details:

Place of Origin: Chongqing, China (Mainland)

Brand Name: HI-SEA

Working temperature range: -40 ˇăC to +135 ˇăC

Wall Material : Thermoplastic rubber

Spiral Material: Steel wire

Length: 10 meters or 15 meters per piece.

Specifications:

Technical Requirements

I.D.

(Inch/mm)

Working Pressure
(Bar/Psi)

Burst Pressure
(Bar/Psi)

1'

25

8/125,10/150,14/200,17/250

24/375,30/450,42/600,51/750

1-1/2'

38

8/125,10/150,14/200,17/250

24/375,30/450,42/600,51/750

1-3/4'

45

8/125,10/150,14/200,17/250

24/375,30/450,42/600,51/750

2'

52

8/125,10/150,14/200,17/250

24/375,30/450,42/600,51/750

2-1/2'

65

8/125,110/150,14/200,17/250

24/375,30/450,42/600,51/750

3'

75

8/125,110/150,14/200

24/375,30/450,42/600

4'

100

8/125,10/150

24/375,30/450

5'

125

8/125,10/150

24/375,30/450

6'

150

8/125,10/150

24/375,30/450
