Single Jacket PU Lining Fire Hose
[Search Related Products]
Single Jacket PU Lining Fire Hose

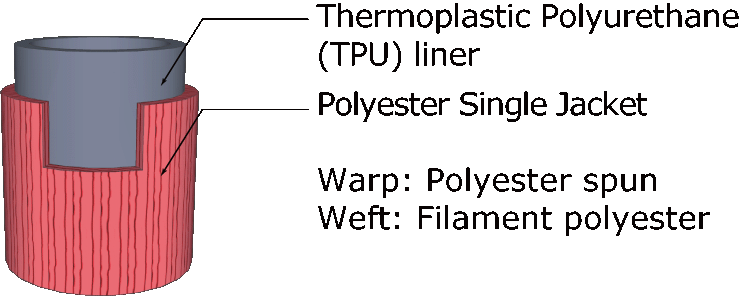

The single hose is made of high tenacity polyester yarn and polyester filament or polyester filament,in plain or twill weaving. Inner lining is PU. It is light weight and compact,approximately half the weight of standard rubber lined single jacket hose. It is highly resistant to ozone attach and abrasion,outstanding low temperature performance,excellent mechanical properties, high tear strength and elasticity.Application for fire fighting,mining and oil field.
Product details:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Weaving jacket: polyester filaments,twill,high pressure resistance,resisting acid,lower temperature resistance.
Length:20m, 25m, 30m
I.D.: 1', 1.5', 2', 2.5', 3', 4', 5', 6', 8'
Application: fire-fighting,industrial and oil-field.
Specifications:
I.D. |
Tolerance |
W.P |
B.P |
Length |
|
Inch |
mm |
mm |
Bar |
Bar |
M/Feet |
1' |
25 |
1.5 |
8/10/13/16/20 |
24/30/39/48/60 |
10/33 15/50 20/66 30/100 |
1.5' |
40 |
1.5 |
6/8/10/13/16/20 |
18/24/30/39/48/60 |
|
2' |
50 |
2 |
6/8/10/13/16/20 |
18/24/30/39/48/60 |
|
2.5' |
65 |
2.3 |
6/8/10/13/16/20 |
18/24/30/39/48/60 |
|
3' |
80 |
2.3 |
6/8/10/13/16 |
18/24/30/39/48 |
|
4' |
100 |
2.3 |
6/8/10/13 |
18/24/30/39 |
|
5' |
125 |
2.5 |
6/8/10 |
18/24/30 |
|
6' |
150 |
2.5 |
6/8/10 |
18/24/30 |
|
8' |
200 |
2.5 |
6/8 |
18/24 |
