30800L/D Wastewater Treater
[Search Related Products]
This wastewater treater is applicable to treat the sewage water, which means human body wastes and the wastes from the toilets on vessels and which is also called ”°black water”±, to meet the effluent standards of IMO MEPC.159£Ø55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called ”°grey water”± on condition that the ”°grey water”± should be pretreated or should select a bigger capacity model to match with.
Technical data
|
Specification |
SWCM-400 |
|
|
Treated Load |
Average (L/D) |
30800 |
|
Pinnacle(L/H) |
3850 |
|
|
Organic Load (kgBOD5/d) |
15.4 |
|
|
Rated Capacity (Person) |
400 |
|
|
Max. Capacity (Person) |
440 |
|
|
Voltage |
AC 380V/50HZ/3¦µ, AC440V/60HZ/3¦µ (or as customers' requirements) |
|
|
Power (kw) |
11 |
|
|
Size (mm) (L*W*H) |
5950*2400*2570 |
|
|
Weight |
Dry (kg) |
4200 |
|
Wet (kg) |
25417 |
|
|
Effluent standard |
BOD5 25mg/L ”Ū, COD”Ū125mg/L, TSS”Ū35mg/L, coliform”Ū100/100ml, PH6”«8.5, CL2”Ū0.5mg/L |
|

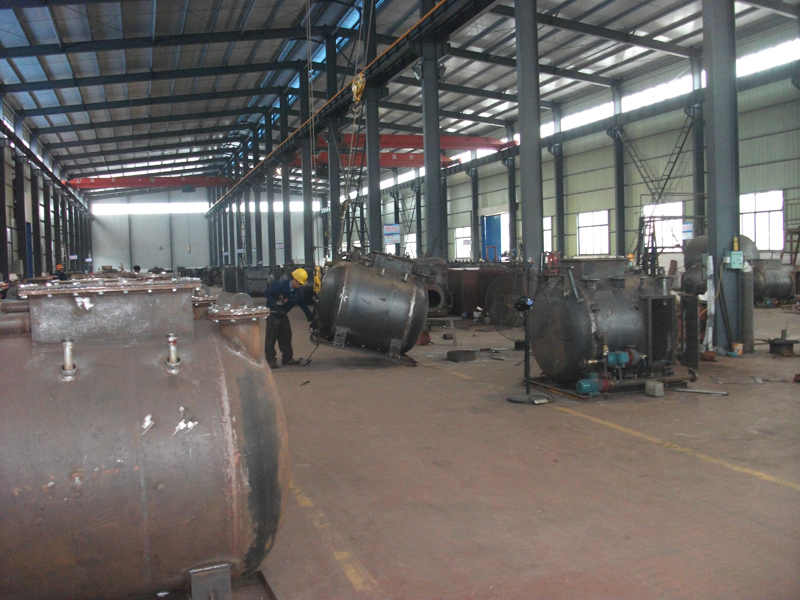

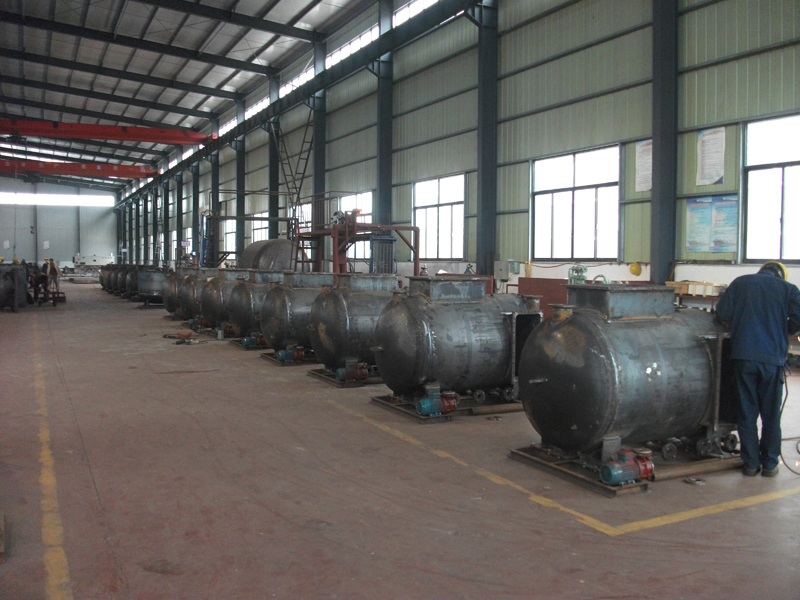

Our Workshop:
