Ships Waste Water Treatment

Ships Waste Water Treatment System

1) This ships waste water treatment system is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called ¡°black water¡±, to meet the effluent standards of IMO MEPC.159£¨55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called ¡°grey water¡± on condition that the ¡°grey water¡± should be pretreated or should select a bigger capacity model to match with.

2) Ships Waste Water Treatment belongs to the key devices for prevention of pollution form shipsin seas and oceans according to the revised Annex IV of the International Convention of thePrevention of Pollution (MARPOL 73/78). The MEPC.2 (VI) resolution adopted on 3th, December,1976 is the present guidelines on implementation of effluent standards and performance tests forSTP, which is called ¡°old standards¡±. Thisdevice is according to the MEPC.159(55) resolutionenacted on 13 October 2006, which is called ¡°new standards¡±. The convention (MARPOL 73/78)provides that all STPs installed on board on or after 1 January 2010 should meet the MEPC.159(55)resolution.

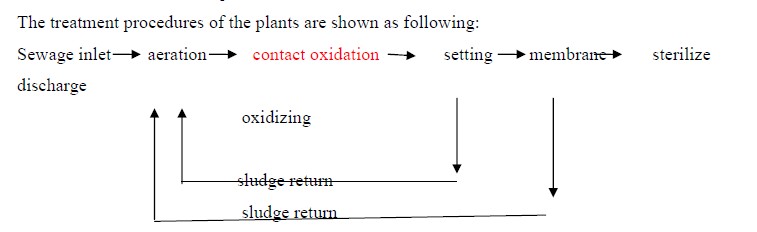

3) The SWCM type Ships Waste Water Treatmentuses activated sludge, contact oxidizing andprinciple of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

Ships Waste Water Treatment

4) The system is patent product, provided with independent innovation intellectual property.

Technical Parameters

Ships Waste Water Treatment

Model

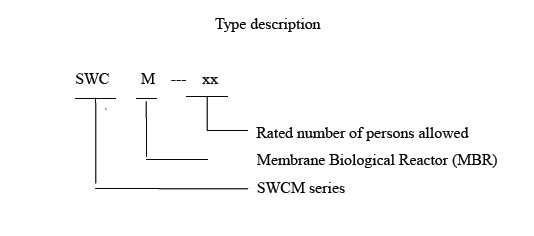

SWCM-

10

15

20

25

30

40

50

60

80

100

120

150

200

250

300

400

LOAD

Average load

£¨L/d£©

840

1190

1540

1890

2310

3080

3780

4480

6020

7700

9100

11200

14700

18200

23100

30800

Peak load

£¨L/h£©

105

149

193

237

289

385

473

560

753

963

1138

1400

1838

2275

2888

3850

Organic load

(kgBOD5/d£©

0.42

0.595

0.77

0.945

1.155

1.54

1.89

2.24

3.01

3.85

4.55

5. 6

7.35

9.10

11.55

15.4

Rated capacity

£¨men£©

10

15

20

25

30

40

50

60

80

100

120

150

200

250

300

400

Max capacity£¨men£©

12

17

22

27

33

44

54

64

86

110

130

160

210

260

330

440

Electricity

AC 380V/50Hz/3¦Õ, AC 415V/50Hz/3¦Õ, AC 440/60Hz/3¦Õ (optional)

Power £¨kW£©

2.5

2.5

2.5

2.5

2.5

3.0

3.0

3.5

4.0

4.0

4.0

6.0

6.0

7.0

9.0

11

External dimension £¨mm£©

L¡ÁW¡ÁH

1510

¡Á

1200

¡Á

1300

1870

¡Á

1200

¡Á

1400

1745

¡Á

1400

¡Á

1525

1935

¡Á

1400

¡Á

1560

1985

¡Á

1500

¡Á

1650

2400

¡Á

1600

¡Á

1700

2410

¡Á

1700

¡Á

1850

2670

¡Á

1700

¡Á

1850

2780

¡Á

1900

¡Á

2050

2795

¡Á

2000

¡Á

2200

3000

¡Á

2000

¡Á

2200

3050

¡Á

2200

¡Á

2300

3600

¡Á

2200

¡Á

2350

3880

¡Á

2400

¡Á

2570

4750

¡Á

2400

¡Á

2570

5950

¡Á

2400

¡Á

2570

weight

Dry weight£¨kg£©

900

1000

1000

1100

1200

1300

1450

1600

1850

2200

2300

2800

3000

3300

3700

4200

Wet weight£¨kg£©

1775

2283

2640

2740

3500

4400

5073

5270

6517

8268

9166

11340

13267

16538

20357

25417

Effluent standard

BOD5¡Û25mg/L, COD¡Û125mg/L, TSS¡Û35mg/L, Coliform¡Û100/100ml, PH6¡«8.5, CL2¡Û0.5mg/L
