WCMBR Series Marine Membrane Sewage Treatment (UV disnfection)

The device adopts the principle of sequence-membrane to treat organic pollutant, the treatment procedures of the device are as following:

Sewage first enters into the buffer tank to adopt the biochemical treatment, meantime the tank can contain the sewage 3 times peak load. When the liquid reaches the middle-level, the cutting pump is started and the sewage is transferred to sequence tank with soft stuffing, and then contact oxidizing、biological treatment the sewage. the discharge pump is started and transferred the treated sewage into membrane assembly. The permeated pure water should be disinfected by UV device, then discharged overboard. According to the regulation of IMO, the regulated sea area should adopt the sequence or membrane treatment.

Structure:

UV Disnfection Biochemical Sewage Treatment Plant

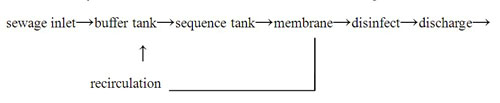

System Principle

Main Technical Parameters

Type	WCMBR-
Type	120(U)	150(U)	200(U)	2500(U)	300(U)	400(U)
Rated Persons	120	150	200	250	300	400
Hydraulic Load (m3/d)	9.10	11.20	14.70	18.20	23.10	30.80
Organic Load (kg/d)	4.55	5.60	7.35	9.10	11.55	15.40
Voltage	AC 380V/50Hz, AC 415V/50Hz, AC 440/60Hz
Power (kw)	10	10	11	12	14	14
Size (mm)	300023002100	350023002100	365029502300	385032502164	500029002450	550032002460
Dry Weight (kg)	4350	4800	5000	6500	6950	7500
Wet Weight (kg)	11000	12900	16200	19600	22500	27150
Effluent Quality	BOD5≯25mg/L, COD≯125mg/L, TSS≯35mg/L, coliform≯100/100ml, PH6～8.5, Cl2≯0.5mg/L
