Alloy steel CO2 fire extinguisher
[Search Related Products]Alloy steel CO2 fire extinguisher
We specialize in producing and researching carbon dioxide fire extinguisher. The cylinder materials are Stainless Steel and alloy-steel. Alloy steel is steel that is alloyed with a variety of elements in total amounts between 1.0% and 50% by weight to improve its mechanical properties. And alloy steel has higher hardness, excellent wear resistance, corrosion resistance and corrosive wear resistance, so it is used widely in our fire extinguisher product.
Product detail:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HI-SEA
Item: Alloy steel CO2 fire extinguisher
Color: red or at customers¡¯ option
Size: 1kg, 2kg, 3kg, 4kg, 4.5kg, 5kg, 50kgetc
Retirement Life: 10 Years
Temperature Range: -30¡ă C ~55¡ă C
Carton Labels: Standard or OEM
Alloy steel CO2 fire extinguisher parameter
Co2 fire extinguisher |
2KG |
2.3KG |
2KG |
2.3KG |
3KG |
3KG |
5KG |
Out-diameter(mm) |
104 |
104 |
105 |
105 |
104 |
136 |
152 |
Volume(L) |
3 |
3.5 |
2.67 |
3.1 |
4.5 |
4.5 |
7.5 |
Cylinder length(mm) |
465 |
530 |
430 |
480 |
660 |
425 |
555 |
Cylinder weight(kg) |
2.83 |
3.31 |
3.31 |
4.22 |
4.29 |
4.7 |
11 |
Extinguisher weight(kg) |
5.45 |
6.26 |
5.69 |
7.17 |
7.94 |
8.35 |
16.65 |
Co2 filled weight(kg) |
2(-0.1) |
2.3(-0.12) |
2(-0.1) |
2.3(-0.15) |
3(0.15) |
4.5(-0.22) |
5(-0.25) |
Max working pressure(bar) |
169 |
169 |
216 |
216 |
169 |
168 |
168 |
Test pressure(Bar) |
250 |
250 |
315 |
315 |
250 |
250 |
250 |
Min wall-thickness(mm) |
2 |
2 |
2.6 |
2.6 |
2 |
5 |
5 |
Packing size(cm) |
25.5*25.5*47.5 |
25.5*25.5*54 |
25.5*25.5*44 |
22.5*22.5*49 |
22.5* 22.5*6 |
17*17*64 |
17*17*69 |

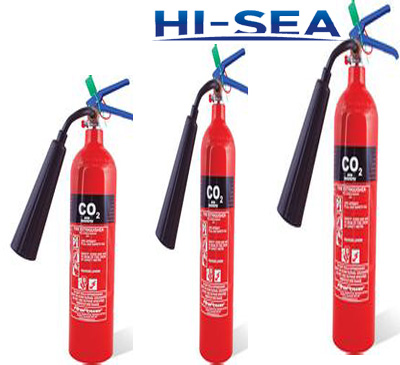

photo of Alloy steel CO2 fire extinguisher
