CO2 fire extinguisher
Carbon dioxide fire extinguishing agent is a highly efficient, nontoxic and clean fire extinguishing agent. After being used, it leaves nothing, damages nothing and pollutes nothing. It is widely used in places of electrical facilities and other places of frequent fire accidents, such as power distribution rooms, correspondence engine rooms and so forth.
It's an environment protection, good electrical insulation and great efficiency in extinguishing fire, widely used in the fire protection of power distribution, archive rooms, transforming houses, computer rooms, etc. Our products show the characteristics advancing technologies, easy operation, good structure, and convenient maintenance, etc.
There are two main types of CO2 fire extinguisher: portable type and wheeled type. Our firm can offer 2-9kg portable CO2 fire extinguisher, and 10kg, 20kg, 30kg, 50kg wheeled Co2 fire extinguisher.
Portable CO2 fire extinguisher parameter
co2 fire extinguisher |
2KG |
3KG |
3KG |
5KG |
6KG |
7KG |
9kg |
out-diameter |
114mm |
114mm |
133mm |
152mm |
152 |
152mm |
152mm |
volume |
3L |
4.5L |
4.5L. |
7.5L |
9L |
10.5L |
13.5L |
cylinder length |
410mm |
580mm |
450mm |
570mm |
650mm |
745mm |
940mm |
cylinder weight |
4.9kg |
6.8kg |
7.2kg |
11kg |
13kg |
14kg |
21kg |
extinguisher weight |
7.55kg |
10.45g |
10.85kg |
16.65kg |
18.65kg |
21.65kg |
30.6kg |
co2 filled weight |
2(-0.1)kg |
3(-0.15)kg |
3(-0.15)kg |
5(-0.25)kg |
6(-0.6)kg |
7(-0.35)kg |
9(-0.35)kg |
max working pressure |
168Bar |
168Bar |
168Bar |
168Bar |
168Bar |
168Bar |
168Bar |
test pressure |
250Bar |
250Bar |
250Bar |
250Bar |
250Bar |
250Bar |
250Bar |
min wall-thickness |
4mm |
4mm |
4.5mm |
5mm |
5mm |
5mm |
5.2mm |
material |
Ck45 |
Ck45 |
Ck45 |
Ck45 |
Ck45 |
Ck45 |
Ck45 |
cylinder packing size(cm) |
25*25*54 |
25*25*71 |
28.5*28.5*58 |
17*17*69 |
17*17*78 |
17*17*8 |
17*17*8 |

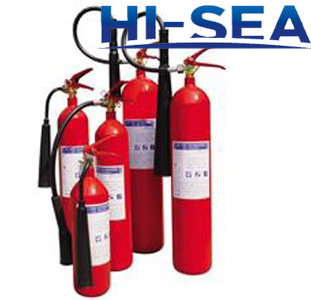

photo of the portable CO2 fire extinguisher

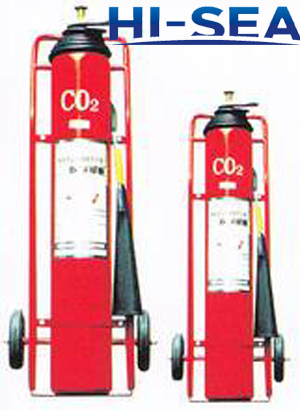

photo of the wheeled CO2 fire extinguisher
